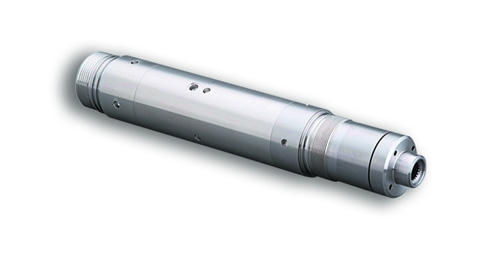

Brushless Downhole Servo Motors for Oil and Gas Exploration and Production
Designed to your specifications for demanding downhole drilling applications.
Applications
- Rotary Steering Systems (RSS)
- MWD and LWD tools
- Tractor tools
- Wireline tools
- Intelligent wells
Characteristics
- Standard and customized products are available depending on your technical and lead time requirements
- Designed to meet proper speed/force performance under ambient conditions
- High performance, reliability and long service life
- Optimum design for available physical limit
- 20 years experience with proven construction and manufacturing techniques
- SmCo magnets for high temperature endurance
| Specifications | |
|---|---|
| Voltages |
from 24 – 1,000 volts DC |
| Torque |
Up to 169.5 Nm (1,500 lb/in.) |
| Speed range |
Up to 10,000 RPM |
| Power range |
7.5 kW |
| HTHP |
over 200°C (392°F), 2068 bar (30,000 psi) |
