Hydraulic Test Actuators

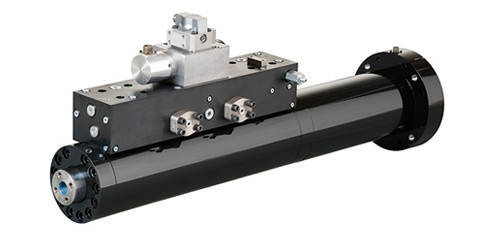

Hydraulic Test Actuator Hydrostatic Bearing

HIGHER LEVEL OF DYNAMIC PERFORMANCE, RELIABILITYAND LONGEVITY
  • Innovative 8 pocket hydrostatic bearing increases side load capacity to 60% of stall output  and reduces energy requirements
  • Higher level of dynamic performance, reliability, and longevity
  • Advanced coating used on the rod significantly improves seal wear for long life and less maintenance
  • Manifold  houses all of piping in the actuator, removing the need for most of the exterior piping



Force Rating
kN
(kip)		 Stroke Length
mm
(in)		 Rod Diameter
mm
(in)		 Cylinder Bore Diameter
mm
(in)		 Piston Area
sq cm
(sq in)		 Cusion Stroke
mm
(in)
30
(6.6)		 152, 204, 254, 306
(6, 8, 10, 12)		  80
(3.15)		 92
(3.62)		 16.21
(2.51)		 25
(0.98)
38
(8.5)		 152, 204, 254, 306
(6, 8, 10, 12)		 80
(3.15)		 95
(3.70)		 20.62
(3.20)		 25
(0.98)
50
(11)		 152, 204, 254, 306
(6, 8, 10, 12)		 80
(3.15)		 99
(3.90)		 26.71
(4.14)		 25
(0.98)
100
(22)		 152, 204, 254, 306
(6, 8, 10, 12)		 100
(3.94)		 130
(5.12)		 54.19
(8.40)		 25
(0.98)
160
(35)		 152, 204, 254, 306
(6, 8, 10, 12)		 100
(3.94)		 145
(5.71)		 86.59
(13.42)		 25
(0.98)
