Hydraulic Test Actuators

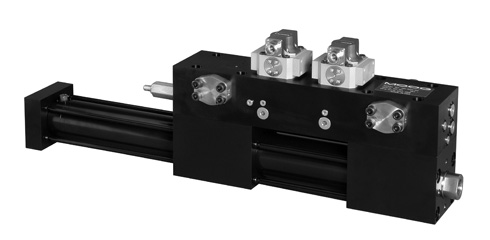

Hydraulic Test Actuator Polymer Bearing

HIGHER LEVEL OF DYNAMIC PERFORMANCE, RELIABILITY AND LONGEVITY FOR
STRUCTURAL TEST APPLICATIONS
  • Oil-cooled polymer bearing improves side load capacity to 15% of stall output, compared to 10% with traditional polymer bearing design
  • Advanced cushion design for higher reliability and safety
  • Higher level of dynamic performance, reliability, and longevity
  • Advanced coating used on the rod significantly improves seal wear for long life and less maintenance
  • No external piping



Dynamic Force Rating
kN
(kip)		 Stroke Length
mm
(in)		 Rod Diameter
mm
(in)		 Cylinder Bore Diameter
mm
(in)		 Piston Area
sq cm
(sq in)		 Cusion Stroke
mm
(in)
15
(3.3)		 102, 152, 254
(4, 6, 10)		 45
(1.75)		 56
(2.21)		 8.73
(1.35)		 15
(0.6)
25
(5.5)		 102, 152, 254
(4, 6, 10)		 45
(1.75)		 63
(2.48)		 15.27
(2.37)		 15
(0.6)
50
(11)		 102, 152, 254
(4, 6, 10)		 70
(2.75)		 92
(3.62)		 27.99
(4.34)		 15
(0.6)
68
(15)		 102, 152, 254
(4, 6, 10)		 70
(2.75)		 99
(3.90)		 38.49
(5.97)		 15
(0.6)
100
(22)		 102, 152, 254
(4, 6, 10)		 70
(2.75)		 109
(4.29)		 54.83
(8.50)		 15
(0.6)
160
(35)		 102, 152, 254
(4, 6, 10)		 70
(2.75)		 126
(4.96)		 86.21
(13.36)		 15
(0.6)
