Spacecraft Mechanisms

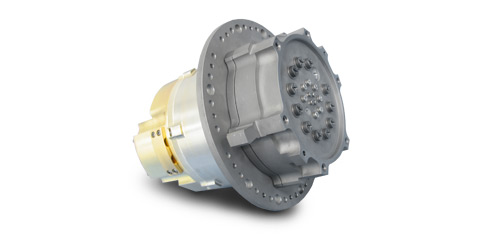

Enhanced Type 5 Rotary Actuator
Moog has designed two variations of the Enhanced Type 5 Rotary Actuator for a wide variety of customer requirements. The actuator was specifically designed for applications requiring:
- High torque
- High stiffness
- Load carry capability
- Small increment output step size
| Specifications | ||
|---|---|---|
| 3-Phase | 4-Phase | |
|
Motor Step Angle (Degree) |
1 |
1.5 |
|
Gear Transmission Ratio |
500 |
500 |
|
Output Step Angle (Degree) |
0.002 |
0.003 |
|
Nominal Running Torque (lb-in) |
950 |
400 |
|
Unpowered Holding Torque (lb-in) |
520 |
410 |
|
Nominal Torsional Stiffness (lb-in/rad) |
200,000 |
200,000 |
|
Nominal Moment Stiffness (lb-in/rad) |
1,000,000 |
1,000,000 |
|
Operating Temperature Range C |
-45 to +95 |
-20 to +95 |
|
Outside Diameter (inch) |
5.8 |
|
|
Overall Length (inch) |
5.41 |
|
|
Mass (pounds) |
6 |
|
|
Power Consumption (watts) |
>10 | >14 |
|
Electrical Redundancy |
Yes |
Yes |
