Motion Bases

Electric Motion Base
MB-E-6DOF/12/1000KG *
(Formerly 6DOF2000E)

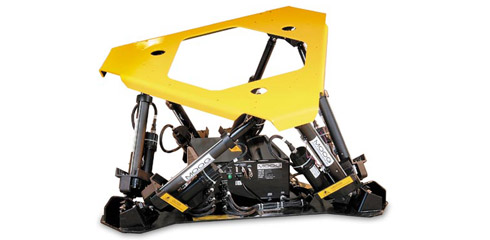

The MB-E-6DOF/12/1000KG is capable of handling a Gross Moving Load (GML) of 1,160 kg (2,554 lb) and is comprised of six 12 inch stroke electric actuators.

Maximum Excursion

  Single Maximum
Surge ± 0.25 m (± 9.8 in) ± 0.27 m (± 10.6 in)
Sway ± 0.25 m (± 9.8 in) ± 0.26 m (± 10.2 in)
Heave ± 0.18 m (± 7.1 in) ± 0.18 m (± 7.1 in)
Roll ± 21.0 º ± 22.0 º
Pitch ± 22.0 º - 23.0 º / + 25.0 º
Yaw ± 22.0 º ± 23.0 º



Maximum Velocity


Surge ± 0.50 m/s (± 19.7 in/s)
Sway ± 0.50 m/s (± 19.7 in/s)
Heave ± 0.30 m/s (± 11.8 in/s)
Roll ± 30.0 º/s
Pitch ± 30.0 º/s
Yaw ± 40.0 º/s



Maximum Acceleration


Surge ± 6.0 m/s² (± 0.61 g)
Sway ± 6.0 m/s² (± 0.61 g)
Heave ± 5.0 m/s² (± 0.51 g)
Roll ± 500 º/s²
Pitch ± 500 º/s²
Yaw ± 400 º/s²





Literature

Overview - Motion Systems

Article - Electrifying the Feel of Flight

Find More Literature

Applications

  • Driver Training for ground vehicles
  • Container Crane training
  • Boat handling
  • Behavioral Studies (University research)
  • Factory Acceptance Test Fixture for multiple markets

*) Legend

MB- : Motion Base
E-/EP-/H- : Electric/ Electric Pneumatic/ Hydraulic
#DOF/ : Number of DOF
#/ : Stroke (inch)
#KG : Gross Moving Payload (kg)



Example: MB-E-6DOF/12/1000KG
