Motion Bases

Electric Motion Base
MB-E-6DOF/60/14000KG *
(Formerly 6DOF30000E)

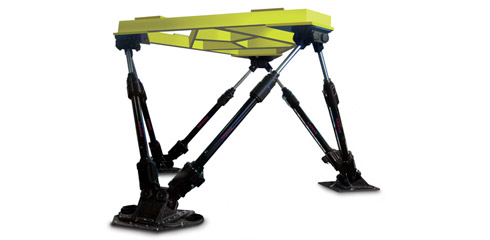

The MB-E-6DOF/60/14000KG is capable of handling a Gross Moving Load (GML) of 14,000 kg (30,800 lb) and is comprised of six electric actuators.

Maximum Excursion

  Single Maximum
Surge - 1.07 m/ + 1.30 m
(-42.4 in/ + 51.7 in)		 ± 1.32 m (± 51.8 in)
Sway ± 1.08 m (± 42.7 in) ± 1.20 m (± 47.2 in)
Heave ± 0.87 m (± 34.3 in) ± 0.97 m (± 38.4 in)
Roll ± 26.2 º ± 28.9 º
Pitch - 24.1 º / + 26.5 º - 27.0 º / + 29.9 º
Yaw ± 33.0 º ± 36.9 º



Maximum Velocity


Surge ± 1.00 m/s (± 39.4 in/s)
Sway ± 1.00 m/s (± 39.4 in/s)
Heave ± 0.80 m/s (± 31.5 in/s)
Roll ± 22.0 º/s
Pitch ± 21.0 º/s
Yaw ± 25.0 º/s



Maximum Acceleration


Surge ± 7.0 m/s² (± 0.71 g)
Sway ± 7.0 m/s² (± 0.71 g)
Heave ± 9.0 m/s² (± 0.91 g)
Roll > 150 º/s²
Pitch > 150 º/s²
Yaw > 150 º/s²



Literature

Overview - Motion Systems

Article - Electrifying the Feel of Flight

Find More Literature

Applications

  • FAA and EASA Level C/D full flight simulation
  • Car and truck simulation
  • Tank simulation



*) Legend

MB- : Motion Base
E-/EP-/H- : Electric/ Electric Pneumatic/ Hydraulic
#DOF/ : Number of DOF
#/ : Stroke (inch)
#KG : Gross Moving Payload (kg)



Example: MB-E-6DOF/12/1000KG
