Electric Pneumatic Motion Base

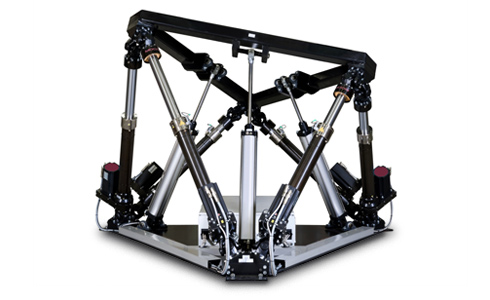

MB-EP-6DOF/24/2800KG *
(Formerly E-CUE 624-2800)
The MB-EP-6DOF/24/2800KG is capable of handling a Gross Moving Load (GML) of 2,800 kg (6,173 lb) and is comprised of six 24 inch electric actuators and three pneumatic actuators that enable a higher payload.
Maximum Excursion
| Single | Maximum | ||||||
|---|---|---|---|---|---|---|---|
| Surge | - 0.46 m/ + 0.57 m (-18.1 in/ + 22.4 in) |
± 0.57 m (± 22.4 in) | |||||
| Sway | ± 0.46 m (± 18.1 in) | ± 0.49 m (± 19.3 in) | |||||
| Heave | ± 0.39 m (± 15.4 in) | ± 0.39 m (± 15.4 in) | |||||
| Roll | ± 23.2 º | ± 23.8 º | |||||
| Pitch | - 23.0 º / +25.6 º | - 27.4 º / + 31.6 º | |||||
| Yaw | ± 24.3 º | ± 27.5 º | |||||
Maximum Velocity
| Surge | ± 0.70 m/s (± 27.6 in/s) | ||||||
| Sway | ± 0.70 m/s (± 27.6 in/s) | ||||||
| Heave | ± 0.50 m/s (± 19.7 in/s) | ||||||
| Roll | ± 34.0 º/s | ||||||
| Pitch | ± 35.0 º/s | ||||||
| Yaw | ± 36.0 º/s | ||||||
Maximum Acceleration
| Surge | ± 7.0 m/s² (± 0.71 g) | ||||||
| Sway | ± 7.0 m/s² (± 0.71 g) | ||||||
| Heave | ± 10.0 m/s² (± 1.02 g) | ||||||
| Roll | ± 225 º/s² | ||||||
| Pitch | ± 225 º/s² | ||||||
| Yaw | ± 225 º/s² | ||||||
Literature
Applications
- Tank and truck driving simulation
- Railway and subway simulation
*) Legend
| MB- | : Motion Base |
| E-/EP-/H- | : Electric/ Electric Pneumatic/ Hydraulic |
| #DOF/ | : Number of DOF |
| #/ | : Stroke (inch) |
| #KG | : Gross Moving Payload (kg) |
Example: MB-E-6DOF/12/1000KG
