Motion Bases

Electric Pneumatic Motion Base
MB-EP-6DOF/36/4500KG *
(Formerly E-CUE 636-4500)

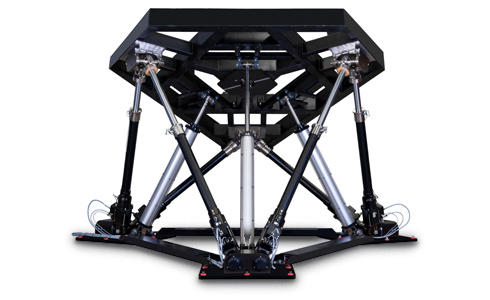

The MB-EP-6DOF/36/4500KG is capable of handling a Gross Moving Load (GML) of 4,500 kg (9,921 lb) and is comprised of six electric actuators and three pneumatic actuators.

Maximum Excursion

  Single Maximum
Surge - 0.69 m/ + 0.85 m
(-27.2 in/ + 33.5 in)		 ± 0.85 m (± 33.5 in)
Sway ± 0.69 m (± 27.2 in) ± 0.73 m (± 28.7 in)
Heave ± 0.59 m (± 23.2 in) ± 0.59 m (± 23.2 in)
Roll ± 23.9 º ± 25.1 º
Pitch - 23.5 º / +25.9 º - 29.3 º / + 32.9 º
Yaw ± 26.5 º ± 29.2 º



Maximum Velocity


Surge ± 0.90 m/s (± 35.4 in/s)
Sway ± 0.90 m/s (± 35.4 in/s)
Heave ± 0.70 m/s (± 27.6 in/s)
Roll ± 33.0 º/s
Pitch ± 32.0 º/s
Yaw ± 35.0 º/s



Maximum Acceleration


Surge ± 8.0 m/s² (± 0.82 g)
Sway ± 8.0 m/s² (± 0.82 g)
Heave ± 10.0 m/s² (± 1.02 g)
Roll ± 150 º/s²
Pitch ± 150 º/s²
Yaw ± 150 º/s²



Literature

Overview - Motion Systems

Article - Electrifying the Feel of Flight

Find More Literature

Applications

  • Race driving simulation
  • Helicopter and fixed wing simulation

*) Legend

MB- : Motion Base
E-/EP-/H- : Electric/ Electric Pneumatic/ Hydraulic
#DOF/ : Number of DOF
#/ : Stroke (inch)
#KG : Gross Moving Payload (kg)



Example: MB-E-6DOF/12/1000KG
