Electric Pneumatic Motion Base
MB-EP-6DOF/36/8000KG *
(Formerly E-CUE 636-8000)

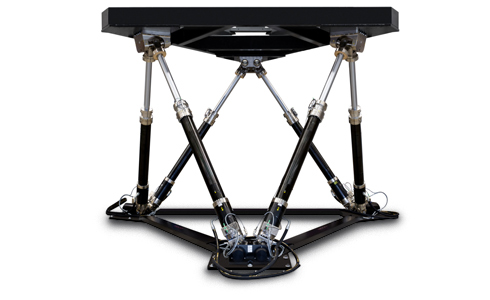

The MB-EP-6DOF/36/8000KG is capable of handling a Gross Moving Load (GML) of 8,000 kg (17.637 lb) and is comprised of six electric pneumatic actuators.

Maximum Excursion

  Single Maximum
Surge - 0.69 m/ + 0.81 m
(-27.2 in/ + 31.9 in)		 ± 0.83 m (± 32.7 in)
Sway ± 0.69 m (± 27.2 in) ± 0.72 m (± 28.3 in)
Heave ± 0.59 m (± 23.2 in) ± 0.59 m (± 23.2 in)
Roll ± 21.0 º ± 22.0 º
Pitch - 20.2 º / + 21.8 º - 25.2 º / + 27.9 º
Yaw ± 22.4 º ± 24.0 º



Maximum Velocity


Surge ± 0.70 m/s (± 27.6 in/s)
Sway ± 0.70 m/s (± 27.6 in/s)
Heave ± 0.60 m/s (± 23.6 in/s)
Roll ± 23.0 º/s
Pitch ± 22.0 º/s
Yaw ± 24.0 º/s



Maximum Acceleration


Surge ± 6.0 m/s² (± 0.61 g)
Sway ± 6.0 m/s² (± 0.61 g)
Heave ± 8.0 m/s² (± 0.82 g)
Roll ± 125 º/s²
Pitch ± 125 º/s²
Yaw ± 125 º/s²



Literature

Overview - Motion Systems

Article - Electrifying the Feel of Flight

Find More Literature

Applications

  • Helicopter simulation
  • Flight simulation

*) Legend

MB- : Motion Base
E-/EP-/H- : Electric/ Electric Pneumatic/ Hydraulic
#DOF/ : Number of DOF
#/ : Stroke (inch)
#KG : Gross Moving Payload (kg)



Example: MB-E-6DOF/12/1000KG
