Electric Pneumatic Motion Base
MB-EP-6DOF/60/8000KG *
(Formerly E-CUE 660-8000)

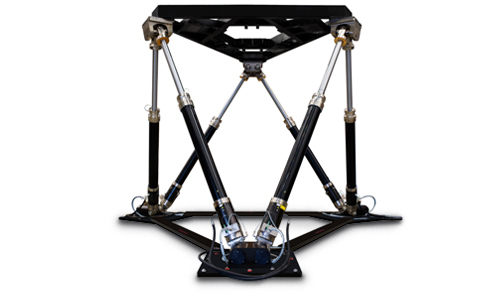

The MB-EP-6DOF/60/8000KG is capable of handling a Gross Moving Load (GML) of 8,000 kg (17.637 lb) and is comprised of six electric pneumatic actuators.

Maximum Excursion

  Single Maximum
Surge - 1.15 m/ + 1.40 m
(-45.3 in/ + 55.1 in)		 ± 1.42 m (± 55.9 in)
Sway ± 1.15 m (± 45.3 in) ± 1.21 m (± 47.6 in)
Heave ± 0.98 m (± 38.6 in) ± 0.98 m (± 38.6 in)
Roll ± 26.3 º ± 28.2 º
Pitch - 25.8 º / + 28.5 º - 33.6 º / + 37.5 º
Yaw ± 30.6 º ± 33.2 º



Maximum Velocity


Surge ± 1.00 m/s (± 39.4 in/s)
Sway ± 1.00 m/s (± 39.4 in/s)
Heave ± 0.80 m/s (± 31.5 in/s)
Roll ± 23.0 º/s
Pitch ± 22.0 º/s
Yaw ± 25.0 º/s



Maximum Acceleration


Surge ± 7.9 m/s² (± 0.81 g)
Sway ± 7.9 m/s² (± 0.81 g)
Heave ± 10.0 m/s² (± 1.02 g)
Roll ± 180 º/s²
Pitch ± 180 º/s²
Yaw ± 180 º/s²



Literature

Overview - Motion Systems

Article - Electrifying the Feel of Flight

Find More Literature

Applications

  • FAA and EASA Level C/D full flight simulation
  • Helicopter simulation



*) Legend

MB- : Motion Base
E-/EP-/H- : Electric/ Electric Pneumatic/ Hydraulic
#DOF/ : Number of DOF
#/ : Stroke (inch)
#KG : Gross Moving Payload (kg)



Example: MB-E-6DOF/12/1000KG
