Hydraulic Motion Base
MB-H-6DOF/60/14515KG *
(Formerly 6DOF32000H)

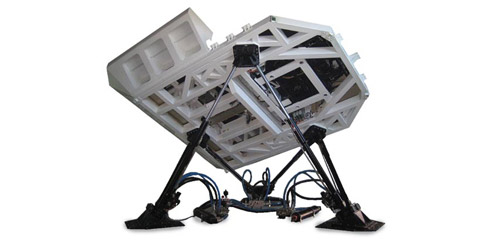

The MB-H-6DOF/60/14515KG is capable of handling a Gross Moving Load (GML) of 14,515 kg (30,000 lb) and is comprised of six hydraulic actuators.

Maximum Excursion

  Single Maximum
Surge - 1.06 m/ + 1.32 m
(-41.7 in/ + 52.0 in)		 ± 1.40 m (± 55.1 in)
Sway ± 1.09 m (± 42.9 in) ± 1.51 m (± 59.5 in)
Heave ± 0.88 m (± 34.6 in) ± 0.88 m (± 34.6 in)
Roll ± 26.2 º ± 33.3 º
Pitch - 24.2 º / + 26.8 º - 32.7 º / + 37.2 º
Yaw ± 33.1 º ± 34.9 º



Maximum Velocity


Surge ± 0.70 m/s (± 27.6 in/s)
Sway ± 0.70 m/s (± 27.6 in/s)
Heave ± 0.60 m/s (± 23.6 in/s)
Roll ± 20.0 º/s
Pitch ± 20.0 º/s
Yaw ± 20.0 º/s



Maximum Acceleration


Surge ± 10.0 m/s² (± 1.0 g)
Sway ± 10.0 m/s² (± 1.0 g)
Heave ± 10.0 m/s² (± 1.0 g)
Roll ± 250 º/s²
Pitch ± 250 º/s²
Yaw ± 250 º/s²



Literature

Overview - Motion Systems

Article - Electrifying the Feel of Flight

Find More Literature

Applications

  • FAA and EASA Level D full flight simulation
  • Tank turret simulation
  • Test platforms



*) Legend

MB- : Motion Base
E-/EP-/H- : Electric/ Electric Pneumatic/ Hydraulic
#DOF/ : Number of DOF
#/ : Stroke (inch)
#KG : Gross Moving Payload (kg)



Example: MB-E-6DOF/12/1000KG
