BS23 High Performance Brushless DC Motors

Utilizing high energy sintered neodymium magnets, the Silencer® Series BS23 high performance brushless motor offers almost 2 times the torque capability of the standard BN23. When maximum performance and minimum size are important, the BS23 offers an effective solution.

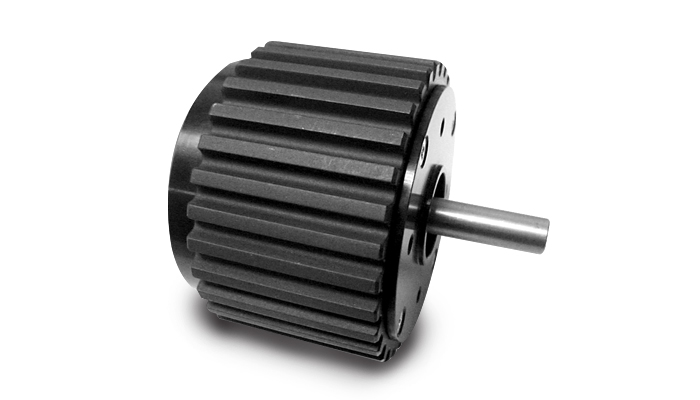

Finned black motor housing offers excellent heat transfer characteristics. Typical options include electronic drives, encoders, gearheads, as well as Hall effect, resolvers, and sensorless feedback.

For more information about how this product can be tailored to fit your specific application, contact our motors experts.

Contact Our Experts

Features

  • Inside rotor construction for quick acceleration
  • 8 pole motor standard, 4 pole motors optional for high speed applications
  • Compact size – lengths from 1.8 to 2.8 inches
  • Continuous torques from 29 to 58 oz-in
  • High energy sintered neodymium magnets
  • Safe, arcless operation
  • High torque per dollar ratio

Benefits

  • Operation at any single speed - not limited to AC frequency
  • Motor life is not limited to brush or commutator life
  • An essentially linear speed / torque curve
  • Efficient operation without losses associated with brushes and commutation or armature induction
  • Precise, variable speed control
  • Extremely quiet operation
  • Long-life operation

Markets

  • Medical equipment - pumps, blowers and electric scooters and wheelchairs
  • Automatic door and window openers
  • Computer-controlled embroidery machines
  • Scanners
  • Packaging equipment and printing products
  • HVAC equipment (air handling)
  • Robotic tape storage and retrieval
  • Semiconductor handling and insertion machines
  • Actuators
