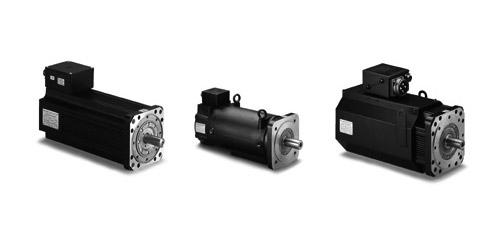

Fastact T/F/W Servomotors

High Density and Continuous Power with Various Cooling Options

Moog’s Fastact T/F/W Series servomotors are the solution to the ever increasing demand for accurate axis control in a variety industrial automation applications. The Fastact T/F/W Series provide high dynamic perfomance in a wide array of models and sizes available at continuous stall torque ratings from 0.6 to 710 Nm (5.3 to 6284 lb-in) with natural, fan or liquid cooling.

Features

AC Servomotor (Synchronous)
Large selection of models
High continuous power with fan cooling
Very high power density with liquid cooling

Benefits

Superior Dynamics improves cycle time
Compact, lightweight
Proprietary low-cogging design
Rugged, minimum maintenance
Flexible design

	Measuring Unit	FASTACT T	FASTACT F	FASTACT W
Continuous stall torque M°	Nm [lb-in]	0.6-392 [5.3 -3469.5]	7.4-522 [65.5-4620.1]	4.7-710 [41.6-6284]
Peak torque M_max	Nm [lb-in]	2.6-920 [22.9 -8142.7]	30-920 [265.52-8142.7]	10-1420 [88.51-12568]
Rated Speed n_N	min^-1 [rpm]	10000-600	6000-1000	6000-600
Rated Power P_N	kW [hp]	0.10-24.3 [0.13-31.59]	1.6-39.3 [2.08-51.09]	1.38-58.63 [1.794-76.22]
Rated Torque M_N	Nm [lb-in]	0.1-232 [.89-2053]	5.1-375 [45.14-3319]	3.9-580 [34.52-5133.44]
Moment of Inertia J	Kg cm²[lb-insec2 x 10-4]	0.17-1470 [0.8-1345]	2.65-1470 [12.47-1345]	2.5-1470 [11.76-1345]
Position transducer	Standard Optional	Resolver Encoder	Resolver Encoder	Resolver Encoder
Temperature monitoring		PTC	PTC	PTC
Brake		Optional	Optional	Optional
Rated bus voltage Vdc	V	325/565	325/565	565
Certificate/marks		CE, UL/Cul	CE, UL/Cul	CE, UL
Cooling		Natural (T)	Fan (F)	Liquid (W)
