Hydraulic Simulation Table

A unique approach to open new test horizons
with hydraulic simulation tables

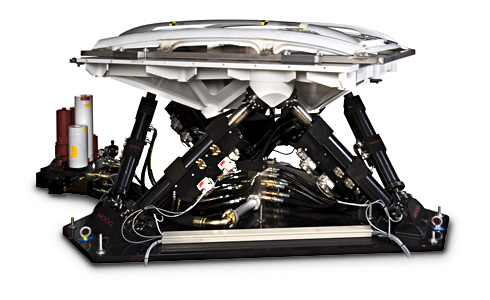

A Hydraulic Simulation Table (sometimes also known as a multi-axis shaker table) is a dynamic system, designed to perform research and development tests. It requires an appropriate configuration, coupled with a Test Controller and features a state-of-the-art digital architecture using the latest hardware and software.

This dynamic Simulation Table is comprised of a platform that is as compact and light as possible and a base jig consisting of base plates on which stress resistant hydrostatic jacks are assembled with rods jutting from the jacks connected to the platform structure.

Both position and acceleration are controlled by the system through integrated control hardware and software. The Simulation Table can support heavy loads, while requiring only a minimum of space in your test labs.

Advantages

  • New test possibilities
  • Man rated applications
  • Optimized test quality
  • Faster speed of test
  • Controlled cost of testing
  • Minimized lab space



Literature

Overview - Simulation Table - Next Generation Testing

Find More Literature

Hydraulic Simulation Table Video

News

Moog Hydraulic Simulation Table Allows Exova to Achieve More Realistic Automotive Testing

Steve Panter, operation manager of global automotive testing provider Exova, purchased the Moog Hydraulic Simulation Table last year and states, “A lot of damage occurs within the range from 50 to 80 Hz when a company does testing analysis. With a lower performance simulation table, results are often filtered down to 40 Hz, so any damaging events beyond that point are not captured.”  Panter adds, “The Moog Hydraulic Simulation Table allows those events to be included in the scope of testing, and broadens the value of the testing process.” Read More...
