Commercial - Industrial Slip Rings

SRA-73574 / SRA-73587

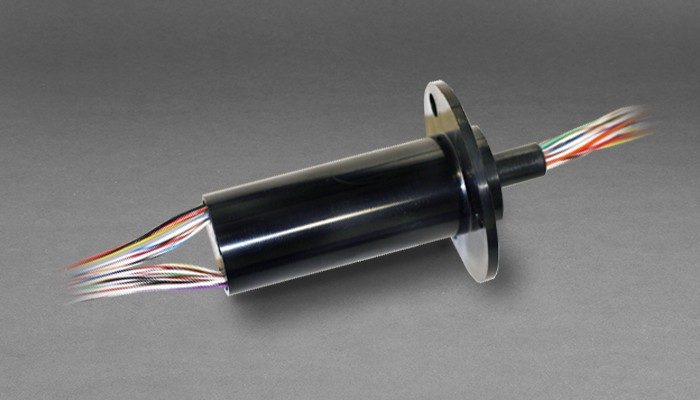

Compact in various circuit configurations SRA-73574/73587 Slip Ring Capsules

A slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power and / or data.

The SRA-73574 / SRA-73587 provides an economical, readily available solution when a compact, high circuit count configuration is required. Our standard units, offer 36, 2 amp, 4, 10 amp and 24, 2 amp signal rings, respectively. These units can be modified to provide various combinations of power, signal and coax circuits. Similar in design to our very popular AC6023, this design features gold-on-gold contact technology for ultimate performance in many challenging applications.

Features

  • 2 amp and 10 amp circuit combinations standard
  • Precision ball bearing for long life
  • Speeds up to 250 rpm continuous
  • Compact size
  • Transfers analog and digital signals
  • Compatible with data bus protocols

Benefits

  • Unique signal handling performance with minimal electrical circuit noise
  • Tight packaging to fit in the most demanding space constraints
  • Low torque to minimize system torque budget
  • Rapid delivery
Specifications
  SRA-73574 SRA-73587
Operating Speed 250 rpm*  250 rpm*
Circuit Configurations 36 circuits @ 2 A., #26 AWG Teflon® insulated, stranded cond. 4 power 10 A continuous, #18 AWG Teflon® insulated, stranded cond. 24 signal, 2 A, #26 AWG Teflon insulated, stranded cond.
Rotation Bidirectional Bidirectional
Voltage 210 VDC / 240 VAC 210 VDC / 240 VAC
Contact Material Precious metal Precious metal
*Please note that the operational life of the unit is dependent upon rotational speed environment and temperature.

Typical Applications

  • Pan / tilt camera mounts
  • Rotary index tables
  • Rate tables
  • Lighting
  • Robotics

SRA-73574 - SRA-73587 Technical Data Sheet

Click here to download
Download PDF
