AC6349

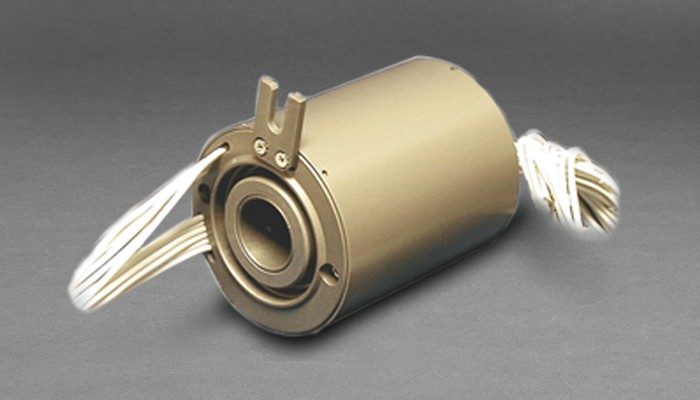

1 inch through-bore various circuit configurations AC6349 Slip Ring with Through Bore

A slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power and / or data.

The AC6349 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 1 inch through-bore for routing hydraulic or pneumatic lines and a compact 3.1 inch outside diameter for minimal space applications. The 15 amp circuits are available in 6, 12, 18 and 24 ring configurations in 4 housing lengths. Similar in design to our very popular AC4598, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, life time operation.

Features

  • 1 inch bore
  • 6, 12, 18 and 24 circuit models
  • Precious metal contacts
  • 15 amp rings
  • Precision ball bearings for long life
  • Speeds up to 250 rpm continuous
  • Compact size
  • Sealed units available
  • Flying leads
  • Fully compatible with both analog and TTL control level signals
  • Rugged black anodized aluminum construction

Benefits

  • Unique signal handling performance with minimal electrical circuit noise
  • Tight packaging to fit in the most demanding space constraints
  • Low torque to minimize system torque budget
  • Rapid delivery

Options

  • Steel bearings
  • Gold - plated rings
  • Seals
  • Long leads
  • IP 65 rated slip ring available (P/N AC6875)

AC6349 Specifications

  • Operating Speed

    250 rpm* continuous

  • Number of Circuits

    6, 12, 18, or 24

  • Lead Length

    20 inch standard

  • Lead Size / Type

    14 gauge, white with tags

  • Voltage

    440 VAC

  • Operating Temp.

    -40°C to +80°C

  • Contact Material

    Silver-on-silver

  • Current Rating

    15 amps / circuits

  • Circuit Resistance

    200 milliohms with 12 inch leads

  • Electrical Noise

    60 milliohms max. @ 6 VDC
    50 milliamps when running @ 5 rpm

  • Environmental

    Splash and dust seal optional

*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

Typical Applications

  • Packaging / wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Robotics
