SRA-73683

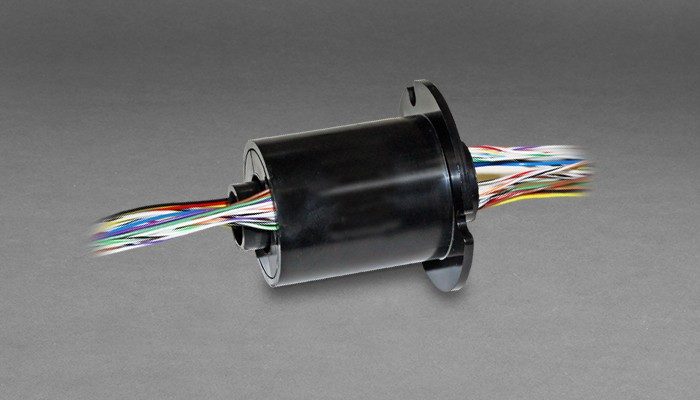

1/2 inch through-bore miniature slip ring capsule
A slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transferring power and / or data. A slip ring is also called a rotary electrical joint, collector, commutator or swivel. A slip ring can improve system performance by simplifying operations and eliminating damage prone wires.
The SRA-73686 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 1/2 inch through-bore for shaft mounting, and a compact 1.375 inch outside diameter and a very short overall length for minimal space applications. The SRA-73683 provides 2 amp circuits in 6, 12, 18 and 24 ring configurations.
Features
- 1/2 inch through-bore
- Compact 1.375 inch outside diameter
- Speeds up to 120 rpm continuous
- Continuous rotation of power and / or data signals
Benefits
- Transfers power, as well as analog and digital signals
- Compatible with data bus protocols
- Compact packaging
SRA-73683 Specifications
-
Operating Speed
120 rpm* continuous
-
Number of Circuits
6, 12, 18, 24
-
Lead Length
12, 24, 36 and 48 inches
-
Lead Size / Type
#26 AWG, Teflon® insulated, stranded
-
Voltage
210 VAC
-
Operating Temp.
-40°C to +80°C
-
Contact Material
Gold
-
Current Rating
2 A, per ring, max.
-
Electrical Noise
40 milliohm max. @ max. speed
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.
