Miniature Actuation for Other High Performance Applications

Moog is an established supplier of high performance actuation products and solutions to high end motor racing manufacturers and race teams, including yacht racing, endurance racing and US motorsport.

In addition, high performance car manufacturers can benefit from Moog's Formula 1 technology to deliver enhanced drive-train, chassis, braking, steering and advanced aerodynamic systems.

Other applications that benefit from miniature hydraulics include those found in medical, downhole and robotics.

High Performance Products

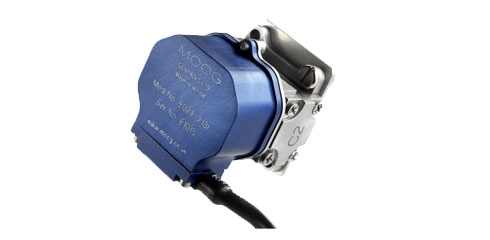

E024 Series Servo Valve

Ideal for motorsport applications where very high levels of power density are required, that can not be achieved with electrical actuation. These include: Selector drum positioning, clutch control, throttle control and torque control in limited slip differentials.

Find out more

30 Series Servo Valves

A two-stage, flow control, double-nozzle, mechanical feedback servo valve with a stainless steel body and integrated torque motor in an environmentally sealed compartment.

Datasheet

E242 Cartridge Direct Drive Valve (DDV) Proportional Valves

Developed especially to meet the demands of the rally car industry, but is now being used in a variety of other technically focused sports, including yacht racing, and by high performance car manufacturers.

Datasheet

E085 Miniature Servo Actuator (Standard and Custom Versions)

A range of miniature actuators are optimized specifically for motorsport applications: Throttle Control, Inlet Trumpets, Waste-Gate, Turbocharger Inlet Guide Vane, Clutch, Gear Shift, active aero controls.

Datasheet

E243 - Linear Power Assisted Steering Valve

Designed specifically to meet the requirements of Formula 1. It occupies the smallest viable space envelope - 41 mm (1.62 in) long and a mass of 27.5 g (0.97 oz).

Datasheet

Precision Ball, Roller and Inverted Roller Screws

A wide range of customizable ball, roller and inverted roller screws for high precision, high performance applications. These are used in applications which require accurate positioning, with the ability to generate high loads and acceleration.

Find out more

Electric Actuation

A comprehensive range of high speed, low inertia miniature brushed and brushless motors. Available framed or frameless. Ability to customise motor electrical characteristics to your application, achieving levels of power density.

Contact Us

E081 Integrated Motorsport Systems

Capability to design, manufacture and deliver complete motorsport motion control systems, utilizing either hydraulic or electrical actuation technology.

Contact Us

For subsea Systems

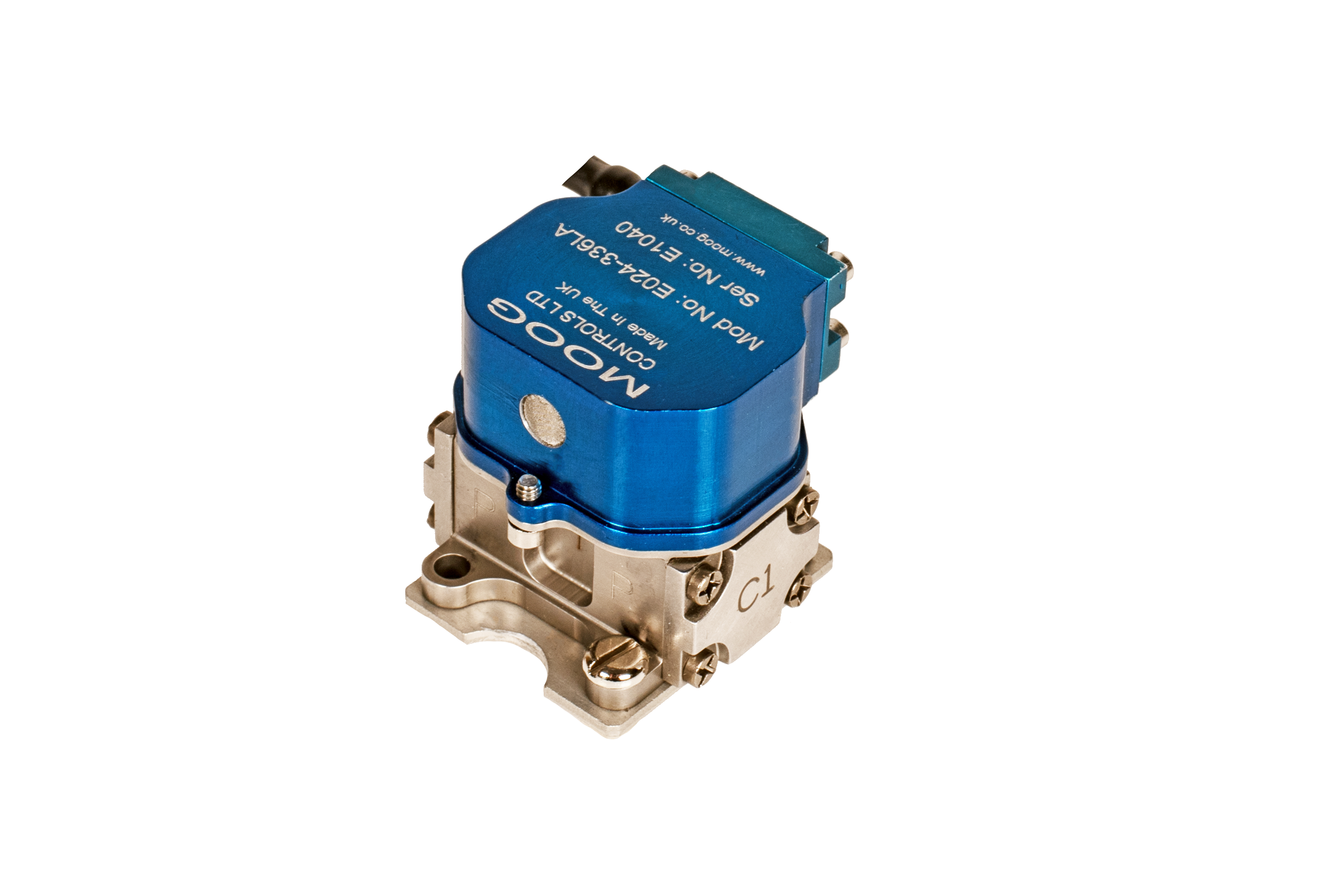

E024 Servo Valve with Vented Motorcap

This variant of the E024 incorporates a vented Motorcap to allow operation in high ambient pressure environments, meeting the needs of subsea applications in the oil and gas industry.

Datasheet

For Subsea Systems

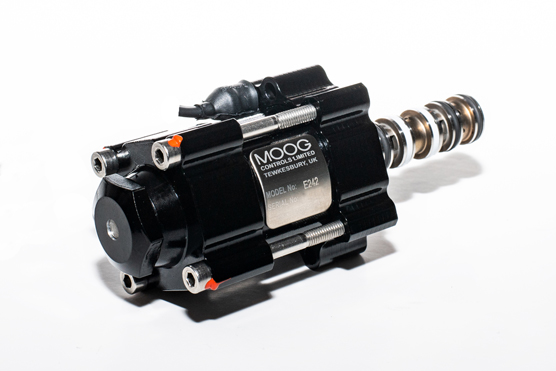

E242-700 Cartridge Direct Drive Valve with Vented Motorcap

This variant of the E242 features a vented Motorcap allowing the valve to be used in applications subjected to high ambient presures such as subsea devices where the valve is located in a pressure compensated chamber.

Datasheet
