AVIONICS

OVERVIEW

Moog is a proven provider of high performance and reliable space-rated avionics hardware and software. Products include control and data handling, power distribution, payload interface cards, mass memory, GPS receivers, motor and actuation drivers and controllers, and onboard computing. Moog offers both off-the-shelf and custom avionics software solutions for extreme environments.

BUS AVIONICS/ FLIGHT CONTROL COMPUTERS

Moog's Advanced Avionics Systems are designed specifically for spacecraft & payload applications. Systems are available for integrated Command and Data Handling (C&DH), Electrical Power System (EPS) and payload applications. Design options include single string and redundant systems. All avionics are tailored to meet the mission requirements. Existing designs are drawn on where advantageous and new designs are created where significant benefits may result. Product and capabilities include high-TRL demonstrated heritage and high-performance next-generation designs. Products are designed for performance and radiation capability in all earth orbits and beyond.

Explore More >

GIMBAL CONTROLLERS

The system contains two primary and two redundant motor drive outputs, which control and drive small, three phase Wye, six state, and permanent-magnet actuators. The GCE contains two primary and redundant incremental encoder interface circuits. The GCE communicates with the spacecraft via a dual redundant MIL-STD-1553B bus.

Explore More >

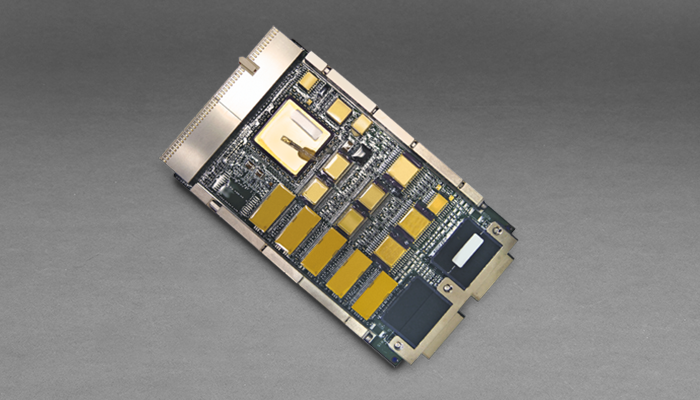

PAYLOAD PROCESSING

These high-performance, next-generation products for Processors (GPU, DSP and ARM) as well as Memory (NAND FLASH and DDR4) are state-of-the-art, radiation-tested and can be provided in component, board-level, or integrated assembly.

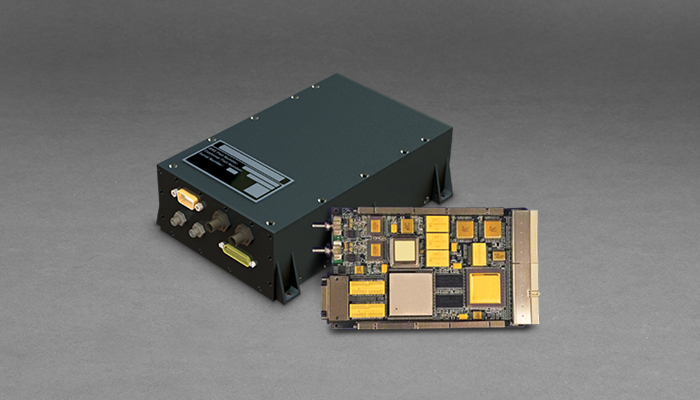

GPS RECIEVERS

Moog provides flight-proven, heritage-based solutions for GPS receivers for orbital regimes in LEO, MEO, GEO and lunar applications.
