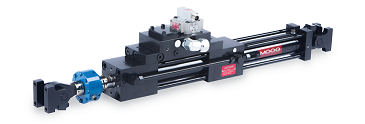

Hydraulic Test Actuator Polymer Bearing

HIGHER LEVEL OF DYNAMIC PERFORMANCE, RELIABILITY AND LONGEVITY

STRUCTURAL TEST APPLICATIONS

  • Oil-cooled polymer bearing improves side load capacity to 15% of stall output, compared to 10% with traditional polymer bearing design
  • Advanced cushion design for higher reliability and safety
  • Higher level of dynamic performance, reliability, and longevity
  • Advanced coating used on the rod significantly improves seal wear for long life and less maintenance
  • No external piping
Rated Force
kN
(kip)
Working Stroke
mm
(in)
Cushion Length/End
mm
(in)
Rod Diameter
mm
(in)
Bore Diameter
mm
(in)
Piston Area
sq cm
(sq in)
15
(3.3)
100, 150, 250 (4, 6, 10)  20
(0.79)
45
(1.8)
57
(2.2)
9.6
(1.5)
25
(5.5)
100, 150, 250 (4, 6, 10) 20
(0.79)
45
(1.8)
63
(2.5)
15.3
(2.37)
50
(11)
100, 150, 250, 500 (4, 6, 10, 20) 20
(0.79)
80
(3.1)
100
(3.9)
28.3
(4.39)
100
(22)
100, 150, 250, 500 (4, 6, 10, 20) 20
(0.79)
80
(3.1)
120
(4.7)
62.8
(9.74)
150
(33)
100, 150, 250, 500 (4, 6, 10, 20) 20
(0.79)
80
(3.1)
130
(5.1)
82.4
(12.8)
250
(55)
100, 150, 250, 500 (4, 6, 10, 20) 20
(0.79)
100
(3.9)
165
(6.5)
135
(20.9)
500
(110)
100, 150, 250, 500 (4, 6, 10, 20) 12
(0.47)
140
(5.5)
240
(9.4)
298
(46.2)
1000
(220)
100, 150, 250, 500 (4, 6, 10, 20) 12
(0.47)
160
(6.3)
300
(11.8)
506
(78.4)
