AJEET SBC with Xilinx V5 FPGA

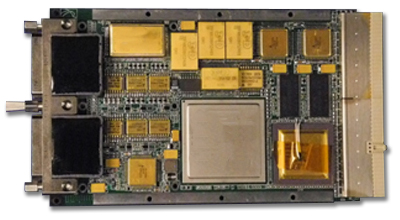

The AJEET board combines the processing functions and the I/O necessary for a complete spacecraft C&DH system on a single 3U board. The AJEET uses the rad-hard BRE440 system-on-a-chip (SoC) and the rad-hard Virtex-5QV FPGA. The board includes the following resources:
Functions:
- Radiation-Hardened BRE440 SoC PowerPC Processor @100MHz Core Frequency
- Radiation-Hardened Xilinx Virtex-5QV FPGA
- 512Mbytes Double Data Rate (DDR) SDRAM System Memory (EDAC)
- 128Kbytes Boot EEPROM (TMR)
- Up to 8Gbyte FLASH Memory (TMR) with independent switched power
- 256Mbytes Digital Signal Processing (DSP) SDRAM (EDAC/Reed-Solomon capable)
- PCI V2.2, 32/64-bit, 33/66 MHz, configurable for cPCI system slot or peripheral slot operation; Initiator and target operation
- Mass: 460g, Power: 11.7W, TID: 50KRad
- Qty 24 RS422 or LVDS inputs
- Qty 24 RS422 or LVDS outputs
- Qty 2 RS485 transceivers
- Qty 1 LVDS DeSerializers (3:21)
- Qty 16 Bi-Level inputs (TTL/CMOS), 5V or 3.3V
- Qty 80 Analogs (+/-10V) / AD590 Temps (16 can be PRTs) with 14 AD590 voltage excitations
- Qty 12 Sun Sensors with 3 Sun Sensor Current Excitations
- Support for 10/100 Mbps RMII Ethernet (Requires 3 LVDS TX, 4 LVDS RX)
- Support for SpaceWire Interfaces (Requires 2 LVDS TX, 2 LVDS RX per interface)
| Feature | AJEET Capability | Comment |
|---|---|---|
| CPU |
IBM PPC 440 core with FPU, 100MHz Core Frequency |
VxWorks 6.7 BRE-Boot BSP Included |
| L1 (Data and Instruction) cache |
32Kbyte each |
|
| L2 Cache |
256Kbyte |
|
| DMA |
4 Channels |
|
| Ethernet |
2 Channels, RMII (10/100) |
LVDS Buffers. Interface unit for ground testing can be purchased as an option. |
| UART |
2 Channels |
RS422 Buffers |
| PCI |
33MHz, 32 bit cPCI Interface |
|
| Boot Code Storage |
128Kbytes EEPROM |
Triple Module Redundant (TMR) |
| SW Code Storage |
1GKbytes Flash |
Triple Module Redundant (TMR) |
| System Memory |
512Mbytes DDR |
EDAC protected |
| DSP and I/O Memory |
256Mbytes SDRAM |
EDAC protected/Reed-Solomon capable. Can be used for Xilinx data processing |
| User Defined FPGA resource |
Rad-Hard Xilinx Virtex-5 (SIRF) |
On-Orbit reprogrammable |
| High Speed data interface |
1 LVDS DESER (3:21) interface |
Up to 800Mbps data transfer link |
| User Defined digital I/O |
2 RS485 buffers |
Connected to Xilinx FPGA for flexibility |
| User Defined digital I/O |
24 RS422/LVDS TX and 24 RS422/LVDS RX |
Connected to Xilinx FPGA for flexibility. Additional Ethernet interfaces are supported (each requires 3 LVDS TX, 4 LVDS RX) SpaceWire interfaces are supported (each requires 2 LVDS TX, 2 LVDS RX) Note: Some of these RS422 buffers are used for UART and Ethernet interfaces. |
| User Defined discrete signals |
16 TTL/CMOS Inputs |
Discrete to monitor relay etc., status |
| User Defined Analog I/O |
80 Analogs / AD590 Temps, 12 Sun Sensors for SOH |
Up to 16 AD590 inputs can be configured for PRTs. Analog I/Os are on AJEET daughter board that can be removed if not required. |
