Exciters

Moog exciters, for generators and other applications, are fully customised, from design to production and test, to meet all applicative needs. Their flexible design allow the to fit into any machine architecture.

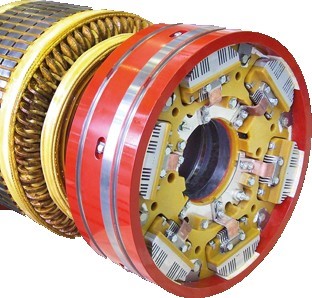

Main exciters for synchronous machines

Moog designs, manufactures and tests fully customized exciters for synchronous machines according to the customer's requirements.

Moog can supply exciters within the following ranges:

  • Power: 0.5 - 250 kW
  • Current: 1-800 ADC (values for permanent state)
  • Voltage: 25-500 VDC (values for permanent state)
  • Speed: 150-3600 rpm



All products are always designed following the mechanical and the electrical requirements of  the customer.

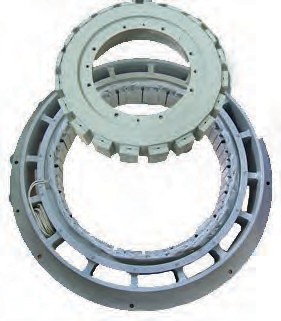

Exciters with permanent magnets

Moog designs, manufactures and tests fully customized pilot exciters with permanent magnets according to the customer's requirements for mechanical dimensions and electrical parameters.

Moog can supply exciters within the following ranges:

  • Power: 0.1 - 20 kVA
  • Current: 1-30 A
  • Voltage: 18-400 VDC
  • Speed: 100-3600 rpm
  • Permanent magnets: NdFeB; Sm2Co17; ferrites



All products are always designed following the mechanical and the electrical requirements of  the customer.
