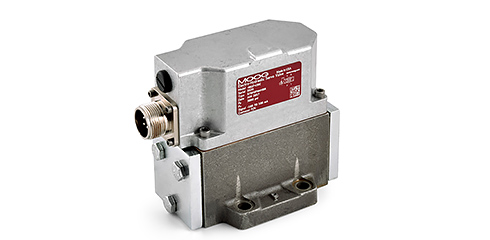

Legacy Product - 62 Series Servo Valves
Direct-Operated Flow Control for Analog Signals
- Two-stage flow control Mechanical Feedback Servo Valve Series.
Important Note: This is a legacy product, not intended to be used for new designs. For new applications, please refer to the G761 / 761 series
| Specifications | |
|---|---|
| Hydraulic Data | |
| Rated Flow* |
10 to 75 l/min (2.5 to 20 gpm) |
| Standard Configurations | 10, 20, 40, 60, 75 l/min (2.5, 5, 10, 15, 20 gpm) |
| Max. Operating Pressure | 210 bar (3,000 psi) |
| Performance Data | |
| 100% Step Response** | 40 ms |
| Frequency Response*** | 60 Hz |
| Electrical Data | |
| Rated Signal**** | 15 to 100 mA |
| Standard Configurations | 30, 100 mA |
| Physical Data | |
| Size (Mounting Pattern) |
Size 04 (ISO 10372-04-04-0-92) |
| Weight | 1.22 kg (2.7 lbs) |
| Additional Options | Contact Industrial Application Engineering for additional Flow, Pressure and other options |
* @ ∆p 70 bar (1,000 psi)
** Response at 3,000 psi System Pressure
*** at 90° Phase Lag
**** Single Coil
