Compact Slip Ring Capsules

AC7036

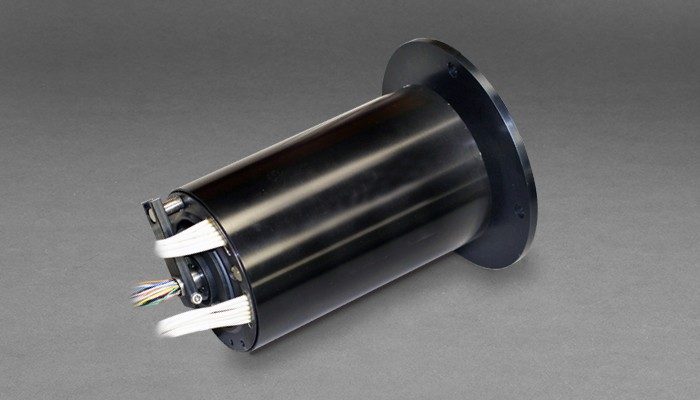

Integrated AC6349 and AC6355 slip ring capsules for high circuit density AC7036 Slip Ring Capsule

A slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power and / or data.

The AC7036 integrates two of our popular slip ring capsules, the AC6349 and AC6355, creating one compact assembly. Connecting hardware is used to combine these units by inserting the AC6355 in the bore of the AC6349. This combination provides a wide range of circuit capabilities up to 24 circuits rated at 15 amps and 36 or 56 circuits rated at 2 amps, in a compact 6.5 inch length and 3.1 inch diameter. The outer capsule features 6, 12, 18, or 24 circuits rated at 15 amps, while the inner capsule can be configured with 2 amp, 5 amp, 10 amp, or coax circuits.

Features

  • Multiple circuit combinations
  • High circuit density
  • Precious metal contacts
  • Speeds to 150 RPM continuous
  • Flying leads
  • Rugged black anodized aluminum construction

Benefits

  • Isolations between power (outer) and signal (inner)
  • Tight packaging to fit the most demanding applications
  • Low torque
  • Built from readily available components for rapid delivery
  • Rotor flange for ease of mounting

AC7036 Specifications

  • Operational Speed

    150 rpm*

  • Number of Circuits

    Variable, refer to AC6349 and AC6355 models

  • Lead Length

    20 inch minimum

  • Lead Size

    14 AWG outer capsule, refer to AC6355 model for inner

  • Voltage

    440 V on 15 Amp; varies on inner see AC6355 model

  • Operating Temperature

    -40°C to +80°C

  • Contact Material

    Silver-on-silver outer / gold-on-gold inner

  • Current Rating

    15 amps outer capsule (AC6349)
    2, 5, 10 amp inner capsule (AC6355)

  • Electrical Noise

    60 milliohms max when tested @ 6 VDC
    50 milliamps when running @ 5 rpm

  • Environmental

    Enclosed capsule

*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

Typical Applications

  • Gimbal systems
  • Packaging equipment
  • Rotary tables
  • Motion control systems
  • Robotics

AC7036 Technical Data Sheet
