Large Diameter Slip Rings



Large Diameter Slip Rings

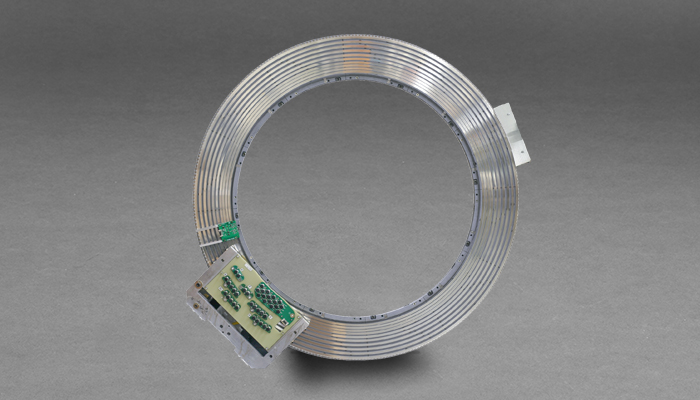

Large bore slip rings represent the union of manufacturing processes and technologies that enable us to offer large, high volume slip rings with advanced features that are cost effective. The manufacturing processes allow the slip ring to be built in an assembly-line fashion, significantly reducing delivery time and price.

Features

  • Drum or platter style
  • Inside diameters up to 55 inches
  • Optical single channels available with data rates up to 5 Gp / s
  • Lengths to 18 inches
  • Rotational speeds to 300 rpm
  • Power rings rated to 1000 V with current to 300 amp
  • Data rings from DC to 80 Mb / s
  • Quieter mechanical system operation
  • Low lifetime maintenance
  • Multiple brush tip options with minimal debris

To learn more, view the large diameter slip ring technical data sheet.



Large Bore Slip Rings With Optics

These large bore slip rings feature optical channels for high speed optical communications, up to 5 Gb / s. This patented technology also has the capability to transfer multiple optical signals per optical channel, resulting in data transfer rates in excess of 5 Gb / s per optical channel.

  • ID to 55 inches, length to 18 inches
  • Drum or platter style
  • 80 Mb / s to 5 Gb / s per channel, aggregate data rate greater than 80 Gb / s
  • Rotational speed dependent on diameter
  • To 1000 V; 300 amps

 To learn more, view the slip ring assemblies and optical rotary joints data sheet.

Part Number Type ID* OD* High
Power
Qty
Mid
Power
Qty
Signal
Qty

High Power
Voltage VAC

High
Power
Current
(cont.)
Speed rpm
Specifications
KW6455-1 Drum 31.952 35.044 4 2 8 480 100 A 120
KW6764-2 Drum 37.400 39.984  480 100 A 120
UY7013 Platter 38.590  56.194  400  100 A 180
BN7093 Platter 42.520  54.100  500  100 A 180
UA7138 Platter 42.047  54.094  400  100 A 120
MR6970-1 Platter 44.291  59.916  600  100 A 180
FO6536 FORJ ONLY 39.624  43.040   -  -  -  -  - 300

Contact Us

Typical Applications

  • Medical CT scanners
  • Luggage scanners
  • Amusement rides
  • Non-destructive test equipment
  • Industrial 3D imagining equipment
  • Cranes
  • Offshore mooringVideo over Ethernet
  • Motor control
  • POE (Power-Over-Ethernet)
  • High definition video security
  • Pan / tilt systems
  • Rotating high definition video displays
