Alternators

Moog offers a wide selection of alternators for a variety of power generation applications. The AG Matrix™ series and the GES series alternators utilize high energy rare earth magnets and dense slot fills to achieve higher AC ouput power.

If the models below do not meet your needs, our engineers can customize a design to meet your exact requirements. Simply contact our experts to get started.

AG Matrix™ Series

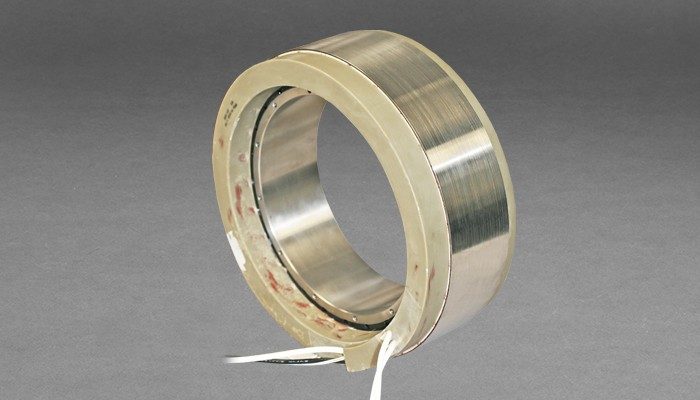

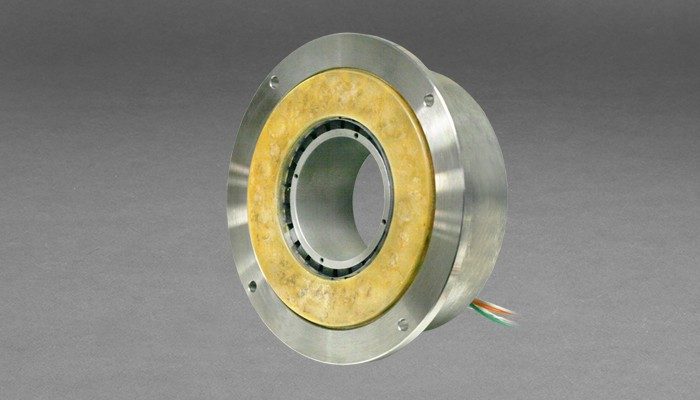

The AG Matrix series brushless permanent magnet alternators are used in applications that require high power density. They are supplied as a direct drive rotor/stator frameless part set that is directly attached to the load. This design eliminates backlash and increases stiffness for optimized direct drive solutions.

Model Rated Power
(W)
Speed
(RPM)
Voltage
(V rms)
Mounting
Dimensions
(in)
AG-5250 345-3590 650-1500
237-263 5.25
AG-7350 868-8550 600-1200 227-239 7.35
AG-8000 1249-12780 3600 208-219 8.00
AG-12600 966-23986 250-800 256-301 12.60
AG-15275 1631-36526 200-800 248-322 15.275
Specifications at 25 ° C

GES Series

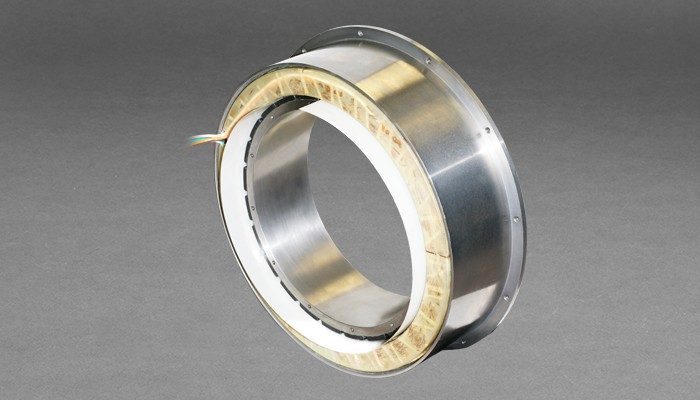

The GES series of alternators are ideal for small wind and hydraulic turbines. They are characterized by a higher yield and a reduced weight compared to the more traditional asynchronous alternator solution. They are available as fully housed assemblies or supplied as frameless part sets.

Model Rated Power
(W)
Speed (RPM) Voltage
(V rms)
Mounting
Dimensions
(in)
GES 009 500-3600 1500-6000
350 6.65 - 11.85*
GES 013 900-7800 600-5000 350
8.25 - 14.63*
GES 018 1900-14800 300-2500 350
10.83 - 21.69*
GES 025 3800-36200 250-1000 350
14.06 - 27.44*
GES 043 5500-46000 100-500 350
9.84 (OD) - 23.62 (OD)*
GES 043 Frameless 5500-46000 100-500 350
7.99 (OD)  - 21.77 (OD)*
GES 120 14800-83000 40-65 350
11.69 (OD) -  24.29 (OD)*
GES 120 Frameless 14800-83000 40-65 350
7.09 (OD) - 18.11 (OD)*
* Exact dimensions are based on version selected
The ratings shown are referred to the following conditions:  Environmental temperature: -25 ° + 40 ° C (for higher temperatures a performance "derating" can be expected). Altitude not exceeding 1000 m from sea level (for higher altitudes a performance "derating" can be expected). Power output at the alternator terminals with P.F. = 1. Alternator reached by a flow of air at about 8 - 10 m/sec.

Contact Us

Typical Applications

  • Auxiliary power generation
  • Wind energy
  • Onboard power generation for manned and unmanned vehicles

Product Spotlight

With an excellent weight / power ratio, Moog's GES alternators are designed to meet the application requirements of manufacturers of small wind and hydraulic turbines.

View the Datasheet >
