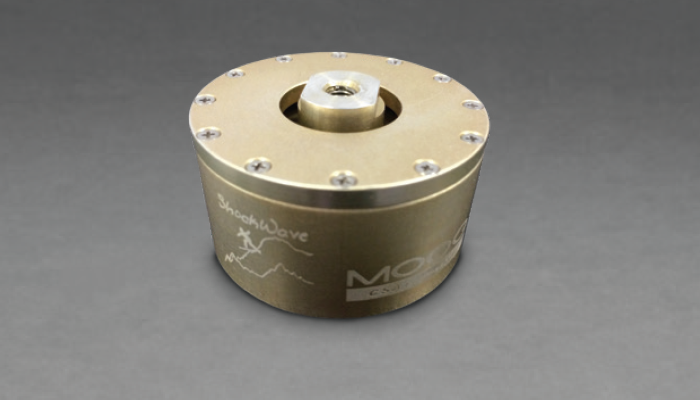

SoftRide

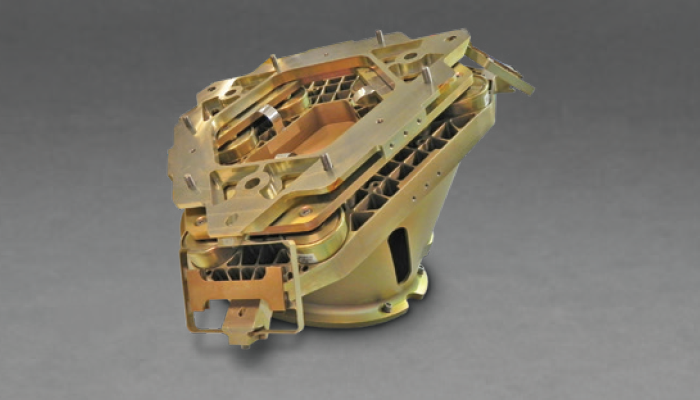

Moog’s SoftRide vibration isolation systems protect whole satellites from the rough ride into orbit. SoftRide also provides some shock isolation and reduces transmission of energy that drives acoustic loading. The standard SoftRide designs are tuned to each combination of launch vehicle and payload to ensure the best performance while remaining compatible with attitude control systems. We manufacture and test SoftRide components and are continuously updating SoftRide for existing and new vehicles, and advancing the technology including adaptive SoftRide.

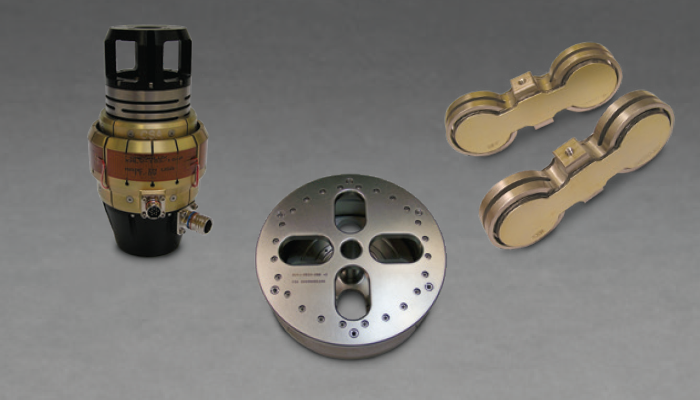

SoftRide is a standalone product that also integrates with our launch adapters. It contains three separate systems that can be tailored for any specific mission: UniFlex primarily isolates in the axial direction of the spacecraft, OmniFlex can isolate in both axial and lateral directions, and ShockRing specifically targets high-frequency shock transmission into the spacecraft. SoftRide systems have flown over 30 times on 10 different launch vehicle families.

Missions (partial list): GRAIL (Delta II), OG2 (Falcon 9), ANGELS (Delta IV), LADEE (Minotaur V), IRIS (Pegasus XL), Commercial Customer (Ariane 5), XSS-11 (Minotaur I), TacSat-4 (Minotaur IV), NROL-15 (Delta IVH), WorldView III (Atlas V)

Documents Download

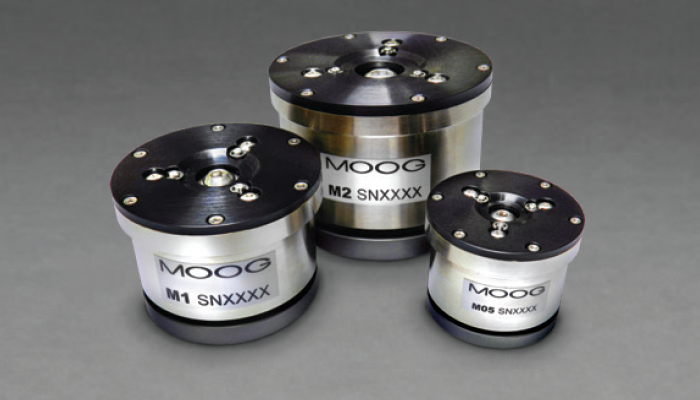

Tuned Mass Dampers and Absorbers

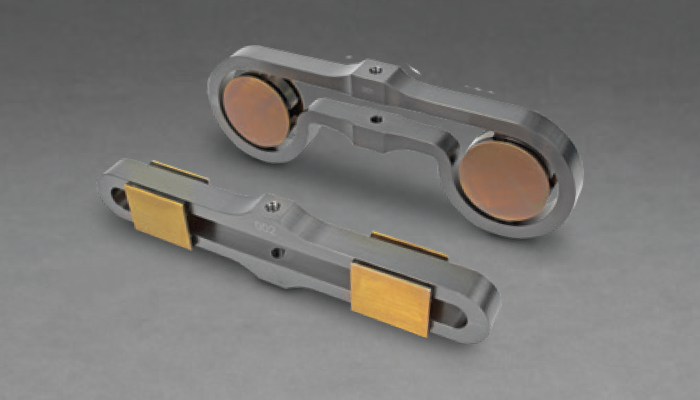

Tuned mass dampers, or TMDs, are resonant devices used to suppress or absorb vibration.  When installed properly on a machine or structure, they draw away vibrational energy from the structure or machine and dissipate it internally, reducing the motion of the machine.

Tuned vibration absorbers, or TVAs, are undamped absorbers.  TVAs and TMDs are modular devices composed of a spring, mass and for TMDs, a damper. These three components can be implemented in a number of ways.

Documents Download

SA Inertial Actuators

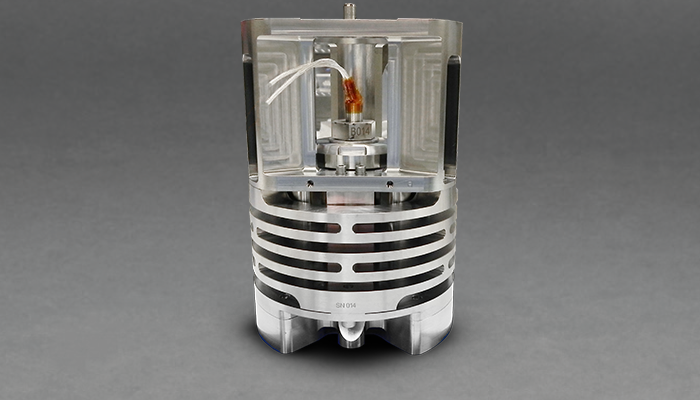

Moog CSA's SA series actuators produce vibration in a controlled, precise manner. Their primary uses are in active vibration cancellation, active damping and dynamic testing. These actuators deliver force at a mounting point by reacting against a mass internal to the device housing. The SA family employs a highly-efficient magnetic circuit to deliver high force output per electrical input. Typical bandwidth is 20-1000 Hz and input impedance is 2-20 Ohms. Force outputs range from one to 35 lb (4.5 - 155 N) with much higher output over narrow frequency ranges. We offer each of the SA actuators with optional mounting configurations and various electronic drive options.
