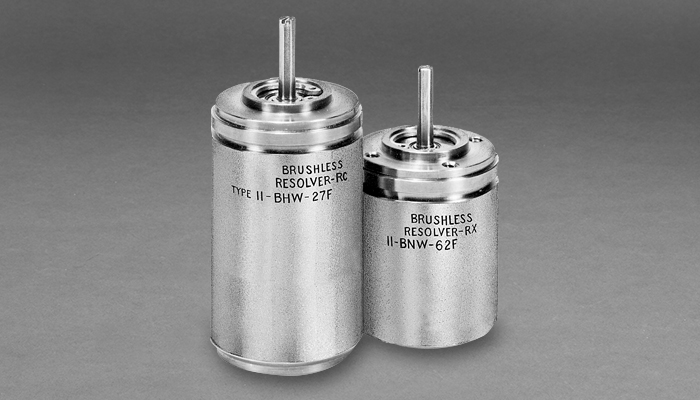

Size 11 Single Speed Brushless Resolvers
For use in applications that range from computer-controlled machine tools to sophisticated medical instrumentation, Moog resolvers with their proven brushless design – are the accurate, safe and quiet way to sense position and / or velocity* in your position feedback system. Their rugged design provides reliable performance in even the toughest, vibration-prone industrial and instrument applications. As a custom manufacturer, Moog can provide a size 11 brushless resolver to the exact configuration and accuracy your application demands.
*Used in conjunction with resolver-to-digital converter
Features
- Uncompromised reliability
- ±7 accuracy standard, ±3 available
- Eliminates electrically generated noise
- High speed rotation
- Reliable performance in presence of high vibration
- 400–10,000 Hz frequency range standard
- Compatible with converters
- .250 dia. shaft readily available
- Short housing lengths available
- Low cost
- Custom modifications available
Contact Us
Typical Applications
- Brushless DC servo commutation, position,
- and velocity feedback
- Robotics and factory automation
- Machine tools
- Material handling equipment
- Medical instrumentation
- Packaging equipment
