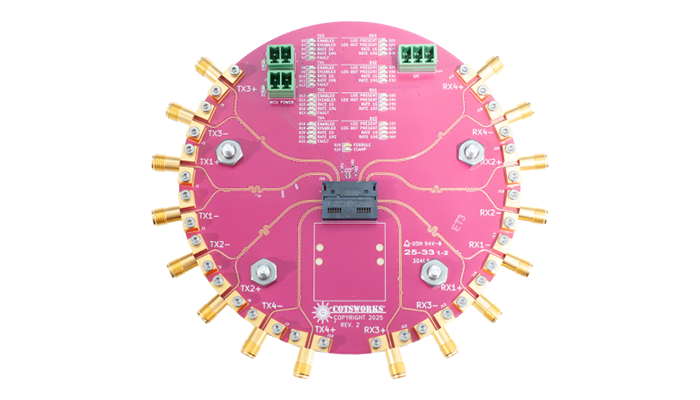

SPOT Evaluation Board

Description

The Moog SPOT evaluation board enables users to test and evaluate SPOT-MB and SPOT-CE transceivers. It supports sending and receiving digital data via 16x SMA connection points and provides I2C access to the transceiver’s digital diagnostics. An on-board microcontroller drives diagnostic LEDs for real-time troubleshooting. The QSFP connector is SFF-8436 compliant, transceiver’s diagnostics are compliant with SFF-8636 memory architecture.

Jump To:
Specifications
Support Materials
Lets Talk
Specifications
16 SMA electrical interfaces
Designed to work with both SPOT-MB and SPOT-CE
Provides I²C access to digital diagnostics compliant with SFF-8636
Easy to read LED indicators for visual function verification
Designed for performance validation and troubleshooting
