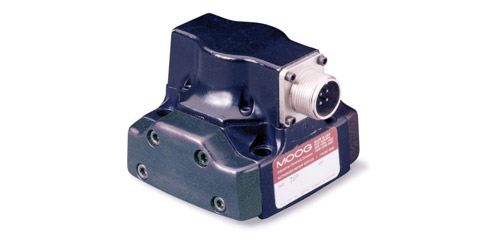

Legacy Product - 760 Series Servo Valves

Direct-Operated Flow Control for Analog Signals.

Note: Legacy product refers to Moog's end of life offerings and these models are not to be used for new designs. Check with your local office regarding availability of these models. For new applications, please refer to the G761 / 761 series.

CONTACT OUR EXPERTS >

Jump To:

Features

Specifications

Resources

Features:

2-stage flow control mechanical feedback valve
Nozzle flapper pilot stage for high dynamics, high resolution and low hysteresis
High spool driving forces, rugged design ensures long-life operation
Compact design allows applications with limited footprint

Specifications
Hydraulic Data
Rated Flow*	0.5 to 60 l/min (0.125 to 15 gpm)
Standard Configurations	5, 10, 20, 40, 60 l/min (1, 2.5, 5, 10, 15 gpm)
Max. Operating Pressure	210 bar (3,000 psi)
Performance Data
100% Step Response**	4 to 16 ms
Frequency Response***	115 to 215 Hz
Electrical Data
Rated Signal****	8 to 200 mA
Standard Configurations	8, 15, 40, 60, 200 mA
Physical Data
Size (Mounting Pattern)	Size 04 (ISO 10372-04-04-0-92)
Weight	0.52 kg (1.13 lbs)
Additional Options	Intrinsically Safe, Explosion Proof, High Null Bias, Vented Motor Cap, Reverse Polarity, Parallel Internal Wiring Contact Industrial Application Engineering for additional Flow, Pressure and other options
