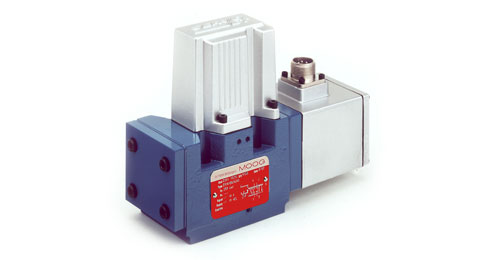

Series D66x - Pilot Operated Proportional Valves for flow control with analog interface

The Moog D66x series valves are pilot operated proportional valves with integrated electronics and analog interface

The D66x proportional valves have spools that are fitted directly in the valve housing and are hydraulically pilot-operated. This design allows for much higher flows and enables for various different failsafe options.

The D66x series uses the familiar ServoJet as the pilot. This pilot is characterized by a low but constant need for pilot oil.

Valves of this series are available as two stage and three stage configuration covering sizes 05, 07, 08 and 10.

This proportional valve was developed with demanding industrial applications in mind and is characterized by high functional flexibility and outstanding dynamics

CONTACT OUR EXPERTS >

Jump To:

Features

Specifications

Resources

Optimized design of valve bodies for high rated flow
Available as 2- or 3-stage valves, dependent on required dynamics
Optional ServoJet or nozzle-flapper pilot valves
Excellent dynamic response due to improved pilot stages
Different fail-safe options available allowing the best fit to the application

Specifications
	D661	D662	D663	D664	D665
Control Functions	Flow
Mounting Pattern	ISO 4401 Size 05 (NG10)	ISO 4401 Size 07 (NG16)	ISO 4401 Size 08 (NG25)	ISO 4401 Size 08 (NG25+)	ISO 4401 Size 10 (NG32)
Hydraulic Data
Rated Flow at ∆p 5 bar (75 psi) per land	30 to 80 l/min (8 to 21.1 gpm)	150 to 250 l/min (39.6 to 66 gpm)	350 l/min (92.4 gpm)	550 l/min (145.3 gpm)	1000 - 1500 l/min (264.1 to 396.2 gpm)
Maximum Flow	180 l/min (47.5 gpm)	600 l/min (158 gpm)	1,500 l/min (396.2 gpm)	1,500 l/min (396.2 gpm)	3,600 l/min (951 gpm)
Maximum Operating Pressure	Port P, A, B - 350 bar (5,000 psi)
	Port T with Y internal - depends on Pilot Valve
	Port T with Y external - 350 bar (5,000 psi)
Step Response Time for 0 to 100% Step	18 to 28 ms	9 to 44 ms	13 to 37 ms	17 to 48 ms	10 to 35 ms
Electrical Data
Supply Voltage	24 V_DC (18 to 32 V_DC)
Rated Signal Options	+/-10 V, +/-10 mA
Electrical Connectors	6+PE, 11+PE
