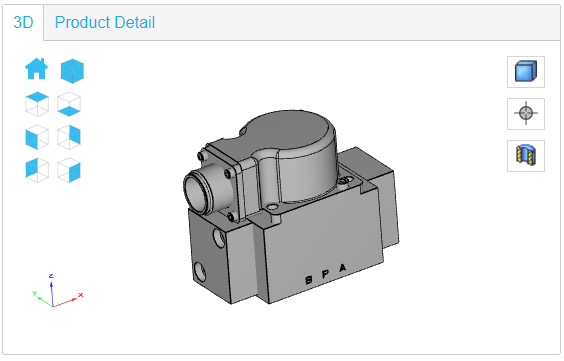

32 Series Servo Valves
Jump To:
Features
Specifications
Resources
Related
Features:
- 2-stage flow control mechanical feedback valve
- Low friction double nozzle pilot stage for high resolution and low hysteresis
- Rugged construction designed for extreme conditions (High shock, vibration or pressure)
- Ultra-Compact, light weight package
- High response for improved control capability
- Stainless steel body and integrated torque motor in an environmentally sealed compartment
| Specifications | |
| Hydraulic Data | |
| Rated Flow* | 15 to 30 |
| Standard Configurations | 15.1, 22.6, 30.2 l/min (4, 6, 8 gpm) |
| Max. Operating Pressure | 275 bar (4,000 psi) |
| Performance Data | |
| 100% Step Response** | 4.5 ms |
| Frequency Response*** | 160 Hz |
| Electrical Data | |
| Rated Signal**** | 10 to 40 mA |
| Standard Configurations | 10, 20, 40 mA |
| Physical Data | |
| Size (Mounting Pattern) | Size 3 (ISO 10372-03-03-0-92) |
| Weight |
370 g (13 oz) |
| Additional Options | Vented Motor Cap, Reverse Polarity Contact Industrial Application Engineering for additional Flow, Pressure and other options |
* @ ∆p 70 bar (1,000 psi)
** Response at 3,000 psi System Pressure
*** at 90° Phase Lag
**** Single Coil
