Electrohydraulic Actuation

Moog is the premier manufacturer of electrohydraulic actuators for Industrial, Aerospace, and Defense applications.

Just as computers have revolutionized information technology, they have also revolutionized controls in aircraft, missiles, launch vehicles (rockets), and industrial machinery. Our principle products are servo actuators that take the information generated by computers and then makes something happen – precision motion control for these applications.

An electrohydraulic actuator system consists of six major elements:

  • Control Electronics which may be a computer, microprocessor or guidance system and which create a command input signal
  • Servo-Amplifier which provides a low power electrical actuating signal which is the difference between the command input signal and the feedback signal generated by the feedback transducer
  • Power Supply which is generally an electric motor and pump to provide the flow of hydraulic fluid under high pressure
  • Servo Valve which responds to this low power electrical signal and controls the flow of hydraulic fluid to an actuation element such as a piston and cylinder which positions the device being controlled
  • Hydraulic Actuator which consists of a piston and cylinder to control the linear motion position
  • Feedback Transducer to measure the output position of the actuator and converts this measurement into a proportional signal which is sent back to the servo-amplifier

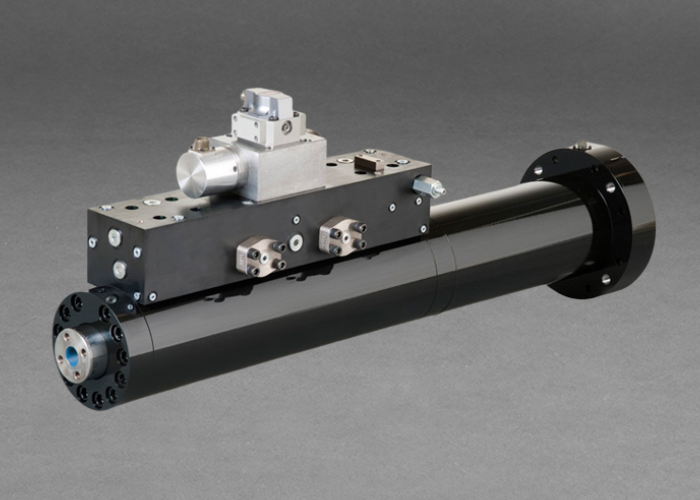

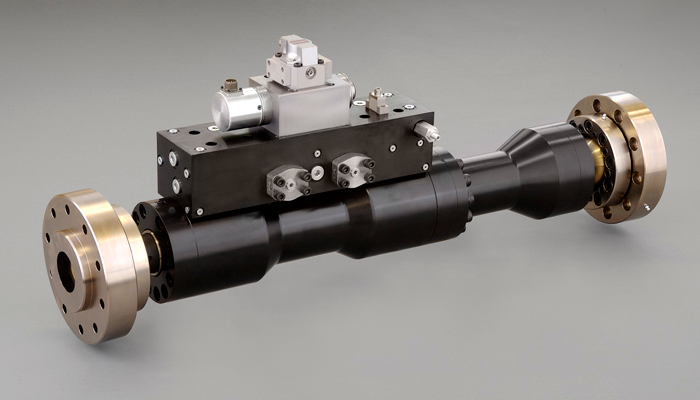

Industrial Electrohydraulic Servo Actuators

Moog has vast experience developing electrohydraulic actuators for some of the world’s most demanding applications. OEM and end-user customers who need hydraulic-powered solutions for their high performance motion control systems rely on Moog for the ultimate in reliability and performance.
