Modular Linear Electromechanical Actuators

Moog has developed a line of Electromechanical Actuators (EMAs) designed to be rugged for harsh environments. The Commercial EMAs are capable of covering a range of performance characteristics with configurable design parameters. The new line of EMAs is derived from existing qualified and in-service products with a focus on lower cost and faster lead time. The modularity of the designs supports rapid vehicle development and evolution.



CONTACT OUR EXPERTS>

Benefits Include:

  • Ease of accommodating changes
  • Lower program development and recurring cost
  • Ease of integration and distribution
  • Facilitates development of next generation technologies

Modular Linear Electromechanical Actuators

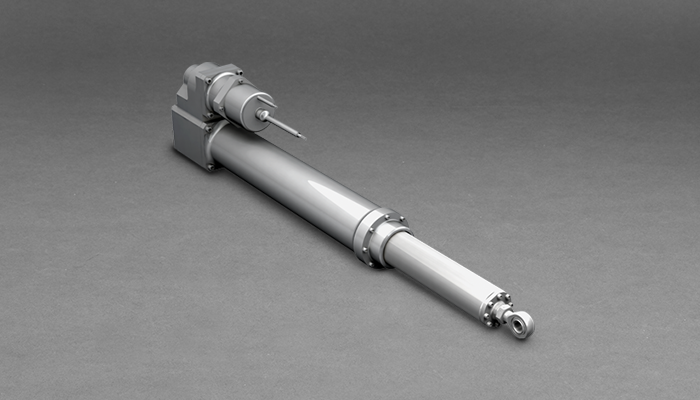

Size 1
+---stroke-(in)
pin-to-pin-length-at-null-position-(in)-
power-(hp)-
power-point-details-(lbf-@-in-sec)
bus-voltage-(vdc)
weight-(lbf)-
4.25
18.75
0.25 – 0.75
650 lbf @ 2.75 or 7.50 in sec
28,
50,
or 150 V
5.2
+---stroke-(in)
4.25
pin-to-pin-length-at-null-position-(in)-
18.75
power-(hp)-
0.25 – 0.75
power-point-details-(lbf-@-in-sec)
650 lbf @ 2.75 or 7.50 in sec
bus-voltage-(vdc)
28,
50,
or 150 V
weight-(lbf)-
5.2

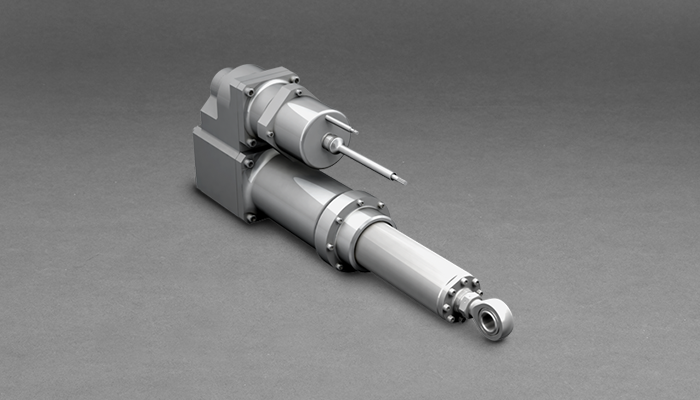

Size 1
+---stroke-(in)
pin-to-pin-length-at-null-position-(in)-
power-(hp)-
power-point-details-(lbf-@-in-sec)
bus-voltage-(vdc)
weight-(lbf)-
1.25
11.25
0.25 – 0.75
650 lbf @ 2.75 or 7.50 in sec
28,
50,
or 150 V
4.0
+---stroke-(in)
1.25
pin-to-pin-length-at-null-position-(in)-
11.25
power-(hp)-
0.25 – 0.75
power-point-details-(lbf-@-in-sec)
650 lbf @ 2.75 or 7.50 in sec
bus-voltage-(vdc)
28,
50,
or 150 V
weight-(lbf)-
4.0

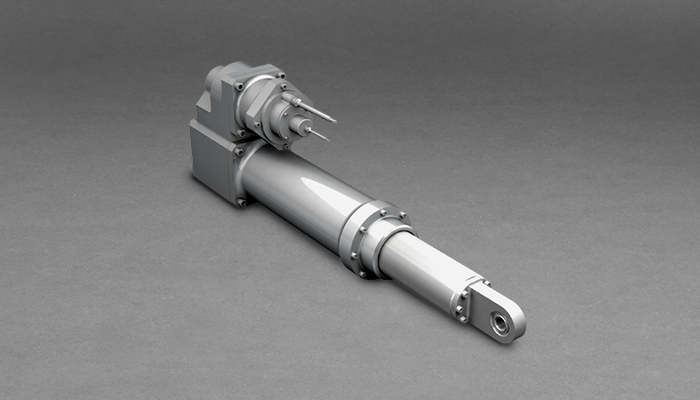

Size 6
+---stroke-(in)
pin-to-pin-length-at-null-position-(in)-
power-(hp)-
power-point-details-(lbf-@-in-sec)
bus-voltage-(vdc)
weight-(lbf)-
12.00
64.25
40.00
50,
000 lbf @ 5.00 in sec
150 or 300 V
535.0
+---stroke-(in)
12.00
pin-to-pin-length-at-null-position-(in)-
64.25
power-(hp)-
40.00
power-point-details-(lbf-@-in-sec)
50,
000 lbf @ 5.00 in sec
bus-voltage-(vdc)
150 or 300 V
weight-(lbf)-
535.0

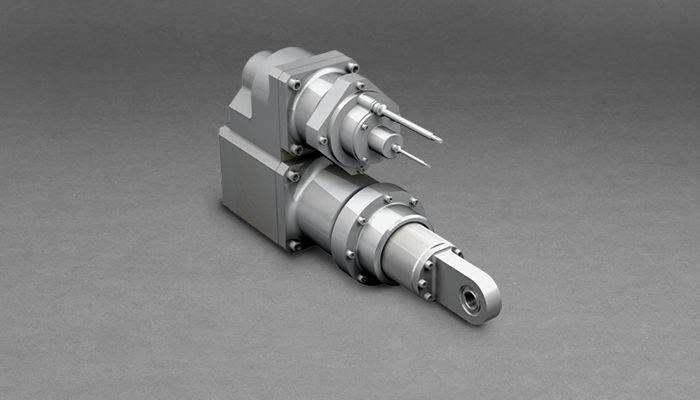

Size 6
+---stroke-(in)
pin-to-pin-length-at-null-position-(in)-
power-(hp)-
power-point-details-(lbf-@-in-sec)
bus-voltage-(vdc)
weight-(lbf)-
3.00
39.00
40.00
50,
000 lbf @ 5.00 in sec
150 or 300 V
440.0
+---stroke-(in)
3.00
pin-to-pin-length-at-null-position-(in)-
39.00
power-(hp)-
40.00
power-point-details-(lbf-@-in-sec)
50,
000 lbf @ 5.00 in sec
bus-voltage-(vdc)
150 or 300 V
weight-(lbf)-
440.0
