AMP28 Blower

MOOG AIRMAX™ HIGH PERFORMANCE BLOWERS

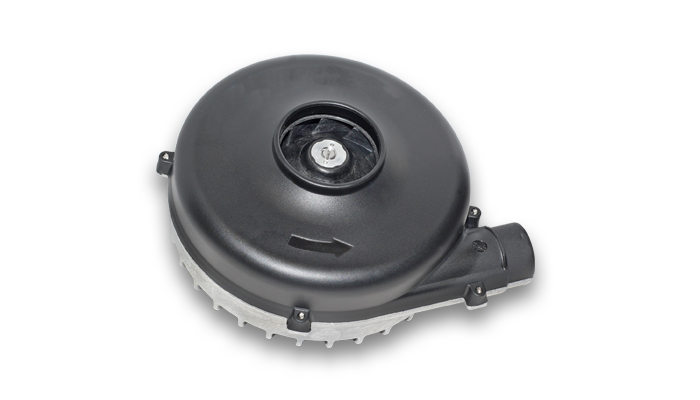

Moog AirMax P28 Series High Performance Blowers

The Moog AirMax™ P28 series of fans and blowers provides excellent output power per unit volume through the use of compact, high energy 3-phase brushless DC motors and efficient airfoil design. The motor utilizes high energy rare earth magnets to provide the blower with the necessary torque to provide maximum airflow in the minimum amount of system space.

These high efficiency compact air movers use high reliability, long-life ball bearings with specially formulated lubrication to extend the life without the need to re-lubricate.

Features

  • 24 VDC, other voltages available
  • AC input available
  • Open collector tach output, weak pull-up on board
  • 0 - 5 V or PWM input speed control (0 - 10 V on AC version)
  • Internal or external drive electronics
  • High efficiency 3-phase brushless DC motor
  • Optional external drive with direct access to Halls and phase leads
  • UL recognized component

Benefits

  • Low noise
  • High efficiency
  • Integrated electronics with customizable system interface
  • Variable speed
  • High power density
  • High pressure
  • Long life
AMP28 Specifications
Input Voltage for AMP-DC-ID (Volts)* 24 +/-4
Input Voltage for AMP-AC-ID (Volts) 118 +/-8
Max Current (Amps) 10
Operating Temperature (°C / °F) 0 - 70 / 32 - 158
Weight (lbs / kg)  1.3 / 590
Tach Out Open collector
Speed Control for AMP28-DC-ID (Volts) 0 - 5 V
Speed Control for AMP28-AC-ID (Volts)
0 - 10 V
Performance Curve (.PDF)

* 24 VDC typical. Other voltages and AC input available upon request.

Contact Us

Typical Applications

  • Pressure management mattresses
  • Large format printers
  • Vaccum systems
  • Low noise, high pressure applications
