AMP45 Blower

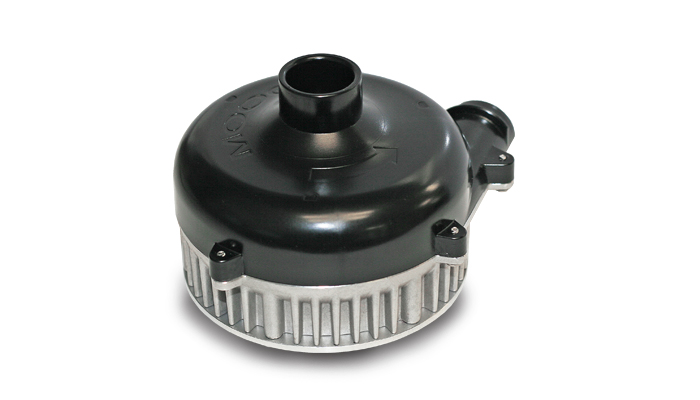

Moog AirMax P45 Blower

The Moog AirMaxTM P45 series of fans and blowers provides excellent output power per unit volume through the use of compact, high energy 3-phase brushless DC motors and efficient airfoil design. The motor utilizes high energy rare earth magnets to provide the blower with the necessary torque to provide maximum airflow in the minimum amount of system space.

These high efficiency compact air movers use high reliability, long-life ball bearings with specially formulated lubrication to extend the life without the need to re-lubricate.


  • 24 VDC nominal input
  • Open collector tach output, weak pull-up on board
  • 0 - 5 V or PWM input speed control
  • Internal drive electronics or hall effect outputs
  • High efficiency 3-phase brushless DC motor


  • Low noise
  • High efficiency
  • Integrated electronics with customizable system interface
  • Variable speed
  • High power density
  • High pressure
  • Long life
  • Smallest in the industry
  • ESD protection
  • External drive version possible
  • Low inertia
AMP45 Specifications
Nominal Input (Volts) 24
Rated Current (Amps) 5
Operating Temperature (Degrees (°C / °F) 0 - 50 / 32 - 122
Weight (lbs / g)
.68 / 310
Tach Out Open Collector
Speed Control (Volts) 0 - 5
Performance Curve (.PDF)

Contact Us

Typical Applications

  • Pressure management mattresses
  • Medical ventilators
  • Vacuum systems
  • Low noise, high pressure applications
  • Smoke extraction
