AG-7350 Brushless Alternators

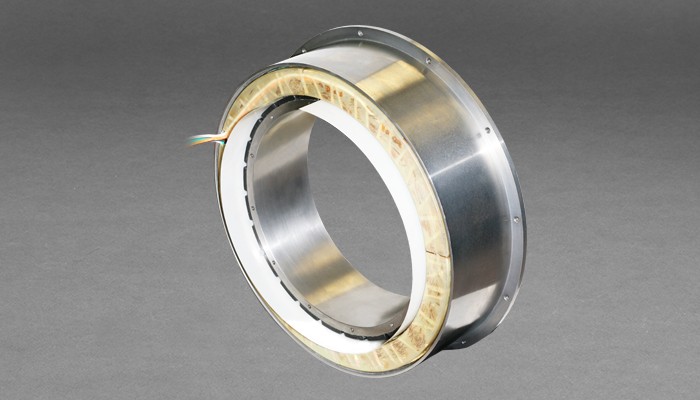

AG-7350 Brushless Alternator

Moog's AG-7350 brushless permanent magnet alternators are used in applications that require high power density. These alternators are available in a wide range of sizes. The AG Matrix™ series alternators have outside diameters from 5.25 to 22 inches (133.35 mm to 558.8 mm) with multiple stack sizes and winding options for each diameter.

For more information about how AG-7350 alternators can be tailored to fit your specific application, contact our applications engineers.

CONTACT OUR EXPERTS >

Details, Features and Typical Applications

FEATURES

  • High performance per volume
  • Small footprint
  • Maximum ouput power and efficiency
  • Double insulated high temp magnet wire minimizes leakage current and provides good thermal resistance

TYPICAL APPLICATIONS

  • Auxiliary power generation
  • Wind energy
  • Onboard power generation for manned and unmanned vehicles

Specifications



Model
Continuous Rated Power (w)Rated Speed (rpm)Voltage
(V rms)
at Rated Power		Current (Amps rms)
at Rated Power		Efficency (%)
at Rated Power		Input Torque at Rated Speed
lb.ft (N.m)		OD*IDWeight
AG-7350
-A-1ES		8686002324.088512.40
(16.81)		7.350
(186.69)		3.350
(85.09)
10.5
(4.76)
AG-7350
-A-2ES		190412002301.799112.50
(16.95)		7.350
(186.69)
3.350
(85.09)
10.5
(4.76)
AG7350
-B-1ES		13046002293.298718.00
(24.41)		7.350
(186.69)
3.350
(85.09)		 14.5
(6.58)
AG-7350
-B-2ES		287212002307.229218.70
(25.36)		7.350
(186.69)
3.350
(85.09)
14.5
(6.58)
AG-7350
-C-1ES		17276002304.338823.60
(32.00)		7.350
(186.69)
3.350
(85.09)
18.0
(8.17)
AG-7350
-C-2ES		375112002338.959223.60
(32.00)		7.350
(186.69)
3.350
(85.09)
18.0
(8.17)
AG-7350
-D-1ES		21776002275.538929.40
(39.87)		7.350
(186.69)
3.350
(85.09)
22.0
(9.98)
AG-7350
-D-2ES		4561120023611.29229.50
(40.00)		7.350
(186.69)
3.350
(85.09)
22.0
(9.98)
AG-7350
-E-1ES		26036002316.518934.90
(47.32)		7.350
(186.69)
3.350
(85.09)
25.5
(11.57)
AG-7350
-E-2ES		5421120023813.19235.00
(47.46)		7.350
(186.69)
3.350
(85.09)
25.5
(11.57)
AG-7350
-F-1ES		30276002277.699040.40
(54.78)		7.350
(186.69)
3.350
(85.09)
30.0
(13.61)
AG-7350
-F-2ES		6360120023915.39241.00
(55.60)		7.350
(186.69)
3.350
(85.09)
30.0
(13.61)
AG-7350
-G-1ES		33196002318.319044.3
(60.07)		7.350
(186.69)
3.350
(85.09)
33.0
(14.97)
AG-7350
-G-2ES		7356120022818.69247.4
(64.27)		7.350
(186.69)
3.350
(85.09)
33.0
(14.97)
AG-7350
-H-1ES		418160022710.69055.5
(75.26)		7.350
(186.69)
3.350
(85.09)
40.0
(18.14)
AG-7350
-H-2ES		8550120022921.69255.1
(74.72)		7.350
(186.69)
3.350
(85.09)		40.0
(18.14)

Ambient Temperature = 25° C.
Winding temperature rating permissible to 155° C.
Assumes stator housing covers entire stator OD in contact with ambient air at 25° C.
Operation with unity power factor.
Rated 230 VAC phase to phase ±10%, voltage level may be adapted according to the application.
All alternators are three phase, all voltages expressed as phase to phase.

*Dimensions do not reflect mounting tip.
Stack lengths from 0.25 to 14.00 inches (6.35 to 355.6 mm)
