Digital Module QDIO 16/16 - Legacy

Slide Background

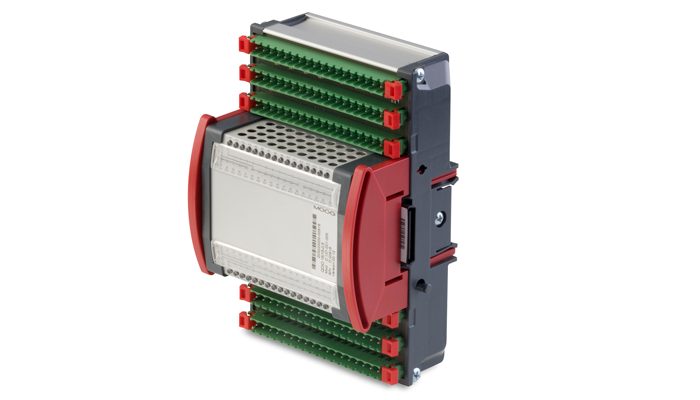

Digital extension module for MSC I and MSC II that includes 16 inputs and 16 inputs/outputs. It is mounted on a DIN top-hat rail and connected to an MSC I or MSC II via the internal extension bus (E-bus).

Important Note: This is a legacy product which means it cannot be used for new designs. Please get in touch with your local office for recommended replacement products.

    CONTACT OUR EXPERTS >

    Jump To:
    Specifications
    Resources



    Specifications
     Inputs/Outputs

    16 inputs, 16 inputs/outputs (each configurable as input or output)

    Nominal Voltage24 V
    Nominal Current of Outputs
    		 0.5 A each output, short circuit and overload protected
