Servo Controller (MSC I) - Legacy

Slide Background

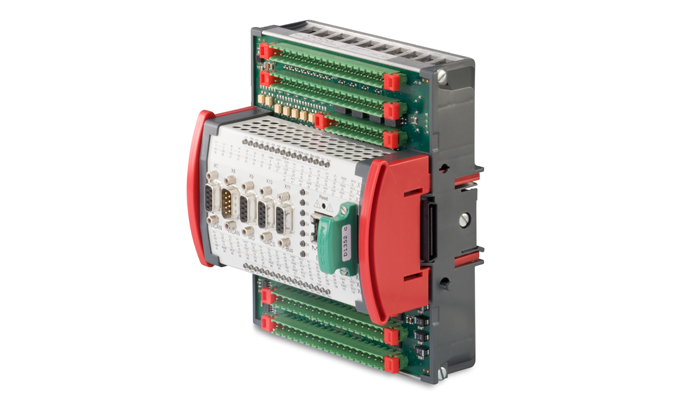

MSC I is a high performance motion controller with PLC functionality equipped with high resolution analog inputs/outputs and position sensor interfaces. It is designed for fast and accurate closed loop control of two hydraulic servo actuators.

Important Note: This is a legacy product which means it cannot be used for new designs. Please get in touch with your local office for recommended replacement products.

    CONTACT OUR EXPERTS >

    Jump To:
    Benefits
    Specifications
    Resources

    Benefits

    • MSC I is a freely programmable servo controller with integrated PLC functionality and it belongs to the M3000 family
    • Programming is completed with the Moog Axis Control Software (MACS), an integrated development environment based on IEC 61131
    • MSC I is best suited for applications where one or two actuators need to be controlled via an analog interface
    • Typical applications are the closed-loop control of one or two hydraulic axes





    Specifications
     CPU

    40 MHz

    Memory4 MB Flash EEPROM
    Minimum Task Cycle Time400 micro seconds
    Update Rate of I/Os

    With fastest task

    Position Transducer Interface2 x Configurable as SSI (Master or Slave) or Incremental Encoder
    Analog I/O8 x analog input, 2 x analog output, all with configurable range and 16 bit resolution
    Digital I/O8 x digital I/O
    Standard Bus Interface2 x CAN/CANopen, 2 x TIA/EIA 232, Ethernet, E-bus interface to extension modules
    Optional InterfacesProfibus-DP slave
