Modular Multi-Axis Servo Drive System (MSD)

A MODULAR APPROACH TO MOTION CONTROL WITH MULTI-AXIS SERVO DRIVES, SINGLE-AXIS SERVO DRIVES AND MOTION CONTROLLER

Higher performance machines can mean a real advantage in productivity and profitability and Moog's Multi-Axis Servo Drive System is a key enabler in achieving this objective. This integrated family of products provides the highest levels of dynamic response, smooth performance and application versatility.

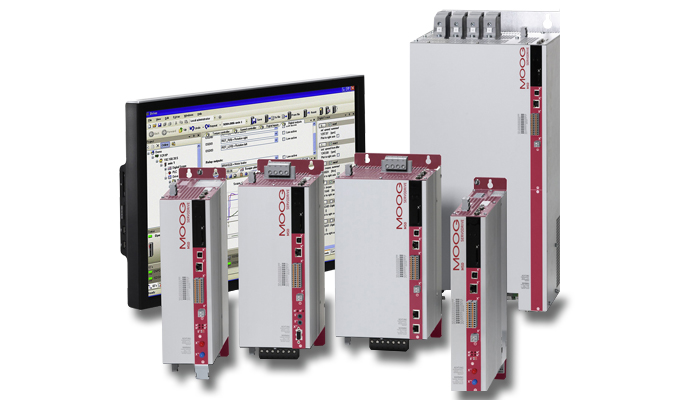

This system includes both modular and single-axis servo drive options, a common shared power supply and a motion controller to coordinate the motion across multiple axes.

Contact Our Experts

Jump To:

Overview

Specifications

Resources

Advantages

Higher machine productivity - From lowering cycle times in an injection molding machine to increasing feed rates in a metal forming press,this product delivers a significant increase in application performance
Improved machine precision - More precise motion control such as smoother movement in flight simulators and higher accuracy and finished part quality in industrial machinery
Higher machine flexibility - The modularity of the MSD coupled with the ability to tailor customer-specific solutions provides the perfect flexible platform for different machine types, putting them at the heart of today's leading-edge designs
Integrated safety function (per EN 61800-5-2) with Safety PLC available as an option

Markets

Specifications

Specifications
Current Rating	Servo Drives from 2-450 A with options of either the classic AC mains (PSA) connection or a DC feed with a central feeder unit
Size	Compact size. Suitable for 300 mm [11.8 in] switch cabinet depth, extremely small housing width, for the best possible switch cabinet usage
Communication Protocols	High-speed communication via field bus connection to a wide range of control systems (including EtherCAT, CANopen, Profibus, SERCOS among others)
Feedback Devices	Support for simultaneous feedback from 3 encoders ensures precise positioning capability extending from resolver to Sin/Cos single/multi-turn encoders
Safety	Built-in functional safety as per EN 61508, EN 62061, EN ISO13849-1, IEC 61800-5-2, personnel safety directly into the drive controller
PLC Functionality	Built-in PLC as per IEC61131 provides functions adapted to the application with direct access to the servo drive
Software	Tailored software packages with motion control functionality for every application
