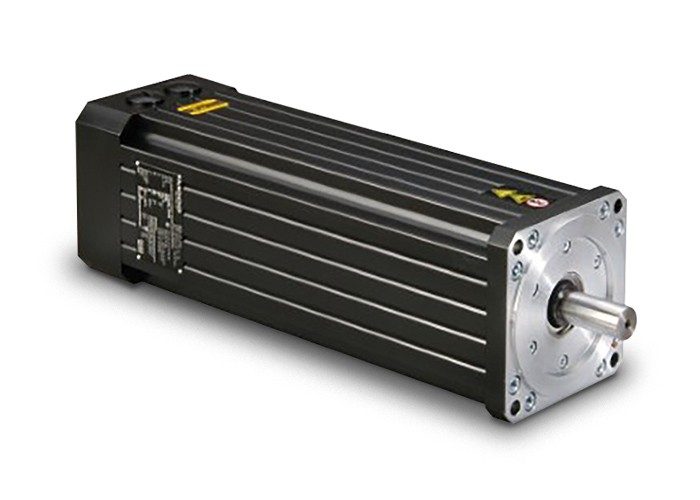

Explosion Proof Dynamic Brushless Servo Motor

Moog Explosion Proof Dynamic Brushless Servo Motors have been certified to comply with the Essential Health and Safety Requirements relating to the design and construction of equipment and protective systems intended for use in potentially explosive environments.
The Moog Explosion Proof Dynamic Brushless Servo Motor is designed and manufactured in accordance with strict CE (VDE) standards, using ruggedized components with proven reliability in harsh thermal and shock load environments. These all combine to offer years of reliable, maintenance-free, operation and boost overall system availability.
The use of high reliability resolvers, sealed life-time lubricated bearings, precision balanced rotors (Class G 6.3 of ISO 1940), reduced runout machining tolerances (Class R of DIN 42955-R) and IP67 construction combine to extend service life.
Features
- ATEX, IECEx, NEC, KOSHA and CNEX certified
- AC Servo Motor (Synchronous)
- Low Inertia
- Natural Cooling
Benefits
- Compact, lightweight
- Proprietary low cogging design
- Rugged, minimum maintenance
- Flexible design
Dimensions | Measuring Unit | Explosion Proof Dynamic Brushless Servo Motor | ||
---|---|---|---|---|
Continuous Stall Torque M° | Nm [lb-in] | 0.52 - 66 |
||
Peak Torque Mmax | Nm [lb-in] | 1.6 - 240 |
||
Rated Speed nN | min-1 [rpm] | 7800 - 2000 | ||
Rated Power PN | kW [hp] | 0.359 – 8.378 |
||
Rated Torque MN | Nm [lb-in] | 0.44 – 40 |
||
Moment of Inertia J | Kg cm2 [lb-insec2 x 10-4] |
0.16 - 157 |
||
Position Transducer | Standard Optional |
Resolver Encoder |
||
Temperature Monitoring | N/A | PTC or NTC | ||
Brake | N/A | Optional | ||
Rated Bus Voltage VDC | V | 325/565 | ||
Certificate / Marks | N/A | IECEx/ATEX/NEC/KOSHA/CNEX | ||
Cooling | N/A | Natural |
Literature
Moog Oil and Gas Microsite
Typical Applications
Mining
Industrial production machinery with environments where vapors or gasses form flammable or explosive ambients may be present
