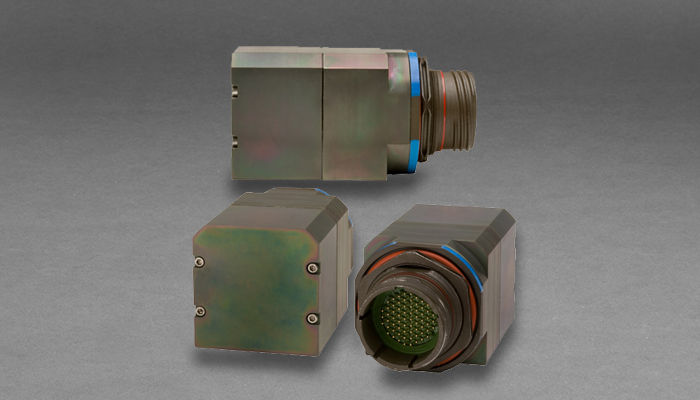

Viking 5 Port Ethernet Switch

Viking 5 Port Ethernet Switch

Viking series 10/100/1000Base-T managed Ethernet switches consist of 5x10/100/1000Base-T ports with autonegotiation and auto MDI / MDIX cicuitry into a bulkhead mounted MIL-DTL-38999 connector assembly.

The external interface of the Viking series 10/100/1000Base-T Ethernet switches is a size 19 D38999 Series III connector with 5x IEEE-802.3U:2005 compliant Ethernet ports plus the power supply and ground connections.

Viking series 10/100/1000Base-T Ethernet switches are vibration isolated, environmentally hardened components designed for use in harsh environment applications.


  • 5 triple-speed (10/100/1000 Mbps) copper Ethernet ports per IEEE 802.3:2005
  • Cable link distances up to 100 Meters (EIA/TIA Cat-5E)
  • Operating temperature range from -40°C to +85°C
  • Jumbo frame support in all speeds (10/100/1000 Mbps) verified
  • Full duplex flow control per IEEE Std 802.3X and half duplex back pressure, symmetric and asymmetric
  • Designed to shock and vibration resistance per MIL-STD-810
  • Olive drab cadmium plating meets stringent corrosion resistance specifications
  • Aluminum housings are strong, durable and light weight
  • Auto sensing of half or full duplex operation
  • Managed Ethernet switch

Typical Applications

Viking series 10/100/1000Base-T Ethernet switches enable high speed network communications in harsh environments.

  • Civil and military vehicle Fast or Gigabit Ethernet networks
  • Managed Ethernet switch applications
