907V
VIDEO MULTIPLEXER

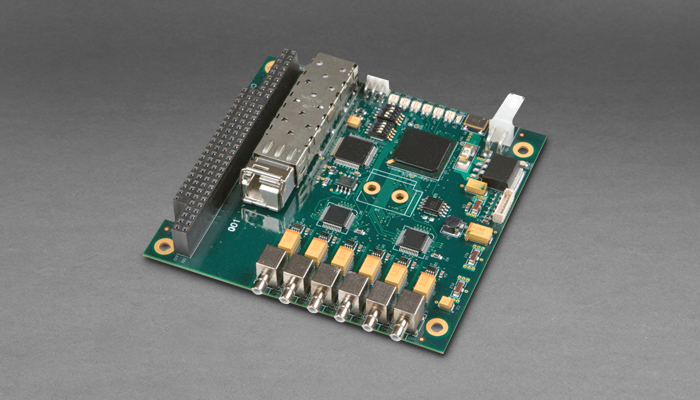

The 907V Video Multiplexer provides digital transmission over a singlemode optical fiber for 6 high quality video channels (NTSC/ PAL, RGB, Y/C, YPrPb formats) in a single PC/104 form-factor card. The 907V may be configured to operate on a single uplink wavelength in video-only mode or with an uplink and downlink wavelength to support model 907 expansion cards with bidirectional data channels.
Expansion cards may be stacked on the motherboard to add up to 48 data channels in a variety of formats, including RS-232, RS-485/ 422, TTL, Ethernet, CAN Bus, analog sonar, hydrophone, audio, and Tritech ARCNET. Depending on transceiver options, optical power budgets are typically 20-26 dB with 10 km or more of singlemode fiber. Diagnostics are available as on-board LEDs for video and optical link status and as an optional serial link.
Features
- Highest density of high quality video channels available
in PC/104 size - Video-only mode operates on a single wavelength
- Compatible with 907-DIAG-E diagnostics card and Graphical User Interface (GUI) software
- Compatible with existing 907 expansion cards and media
converters - Interchangeable SFP transceiver
Benefits
- Reduces cost and number of cards required for video intensive application
- Reduces number of wavelengths required in CWDM systems when using video-only mode
- Simplifies troubleshooting with advanced diagnostics
- Supports reuse of existing 907 cards and reduced sparing in mixed 907 and 907V systems
- Supports a wide range of options including CWDM
wavelengths
907V Specifications | |
---|---|
No. Channels | 6 |
Format | NTSC/PAL, RGB, Y/C (S-video),YPrPb |
Digitization | 10-bit (6 channels, video only) 10-bit (4 video channels with expansion cards) 8-bit (6 video channels with expansion cards) |
Bandwidth | 6.0 MHz |
SNR | > 60 dB (62 dB typical) |
Impedance | 75 Ohms |
Optical Fiber | 1 or 2 singlemode (9/125 µm) |
Baud Rate | 1200 Mbaud |
Wavelengths | 1310, 1550 nm standard (CWDM optional, 1471 - 1611 nm) |
Flux Budget | > 20 dB (24 dB typical) |
Power Voltage | +5 VDC ± 10% regulated |
Power Used | 3.5 W typical |
Dimensions | PC/104 (form-factor only) |
Weight | < 120g (0.25lb), including SFP |
Optical | ST/PC (standard), LC (CWDM options) |
Video | 6 x 5 SMB |
Power | 2 pin Molex, 0.156” pin spacing |
Temperature | -10°C to +60°C (operating) -20°C to +85°C (storage) |
Humidity | 85% RH, non-condensing |
Vibration | 5 g, 25-1000 Hz, 3 axes |
Shock | 30 g, 11 ms half-sine, 3 axes |
