Remote Power Stage

The Remote Power Stage (RPS) offers two channels of motor drive control while pulse width modulating up to 280V of bus voltage. The RPS allows for feedback and control circuit pass through via a 28V common bus. The box is sized to maximize application of core IGBT module in a sealed enclosure.

Contact Our Experts >

Jump To:

Overview

Resources

Key Features

Isolates high voltage components from low voltage controls
Battery initiation capability
Additional HV Input connector for ground support and pre-flight check-out
2 Channels of 3-phase motor bridge
2 Channels of 3-phase motor current sense
Built-in Monitors and Fault Detection
Supports modular architecture solutions

Output Phase Current

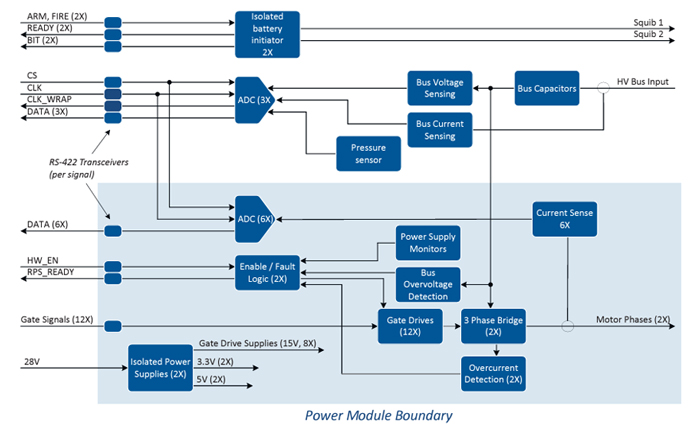

RPS Power Drive Schematic

Performance Characteristics

Characteristic	200 AMP	600 AMP
Model	RPS60202	RPS60602
Input Voltage	300V	300V
Output Current	133A	400A
Max Power	40kW	120kW
Thermal rating	10kW	30kW
Altitude	Unlimited	Unlimited
Weight	29lbs	47lbs
