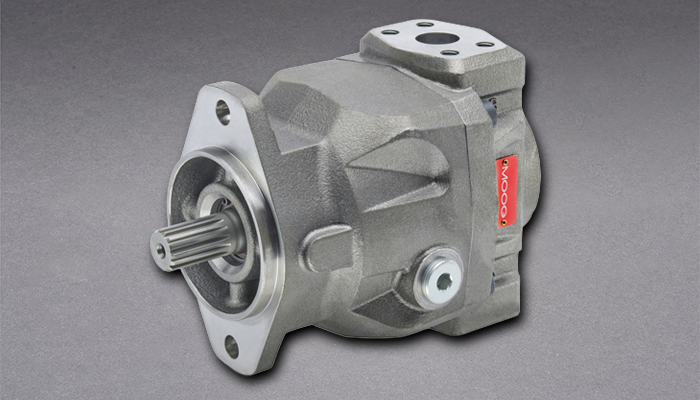

AXP Axial Piston Pump

AXP

Perfect Balance. Zero Compromise.

The new Moog AXP Axial Piston Pump Series delivers the ideal balance of performance, features, and cost‑efficiency. Finally, a solution both Engineering and Purchasing can agree on.

By integrating the strengths of internal gear and piston pump designs, the AXP delivers high-speed, reduced-noise performance with exceptional cost-efficiency, while maintaining the reliability and precision expected from piston systems.

CONTACT OUR EXPERTS >
Jump To:
Overview
Specifications
Resources

Overview

The AXP Series is available in the sizes 33, 63 and 100 with fixed displacement. This lays the foundation – but the product family will continue to grow: In addition to the size 145, variable displacement pumps and versions for four-quadrant operation will follow.

Built to Last

  • Patented slipper-free design: significantly reducing sensitivity to low suction pressures.
  • Exceptional resistance to cavitation and contamination—ideal for demanding applications.


Reduced Noise

  • 15-piston setup, combined with sound-optimized case and flange reduces pulsation and noise for smoother and quieter operation.


Versatile and Efficient

  • Zero-speed operation with unlimited pressure holding.
  • Full-range variable speed with rapid acceleration/deceleration.
  • Enables smaller pump/motor sizes, saving space and cost.
  • Can be operated at maximum negative speed for active pressure control.
  • 100% through-drive capability

Smooth and Precise Motion

  • 15-piston-floating design reduces pulsation, ensuring smooth, accurate motion.


Superior Performance-to-Price Ratio

  • A perfectly balanced pump solution—designed to maximize equipment performance and profitability.

Specifications

Size 33 63 100
Type of construction Axial piston pump for open circuit and and speed controlled operation, fixed displacement
Type of mounting SAE mounting flange acc. to DIN 3019-1 (imperial dimensions)
Mounting position Any
Displacement, geometric, per revolution 33 cm3 63 cm3 100 cm3
Weight (single pump) 21 kg (46.3 lb) 37.7 kg (83.1 lb) 48.9 kg (107.8 lb)
Inertia 35.7 kg cm2 (12.2 lb in2) 107.5 kg cm2 (36.7 lb in2) 235.2 kg cm2 (80.4 lb in2)
Maximum operating pressure 350 bar (5,000 psi)
Peak operating pressure 380 bar (5,500 psi)
Maximum speed at 1 bar (15 psi) inlet pressure 3,700 rpm 3,000 rpm 2,600 rpm
Minimum speed 0 rpm (up to 350 bar)
Ambient temperature -15 to 80 °C (5 to 176 °F)
