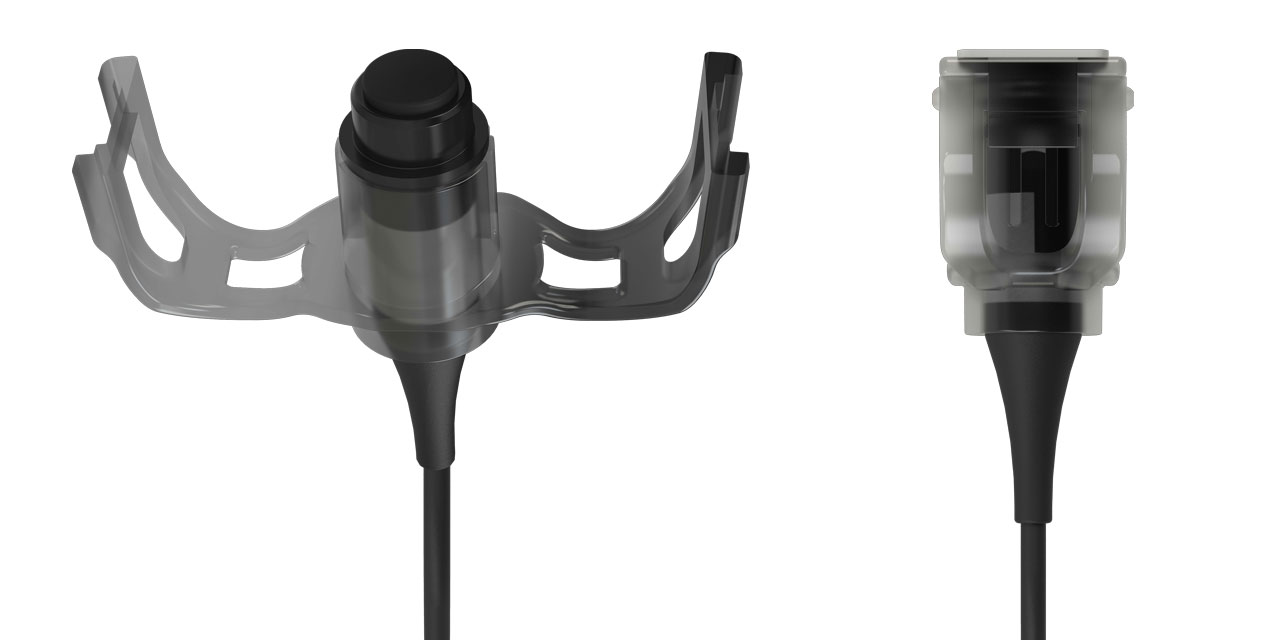

LifeGuard Point Level Sensors are extremely accurate, non-invasive, and easily integrate into fluid managements systems and provide proven, reliable performance.
LifeGuard Point Level Sensors provide optimal sensitivity without the need for calibration.
Can be mounted using our unique self-adhering mounting bracket or can be integrated into your system.
All electronics are integrated into the sensor housing, making implementation into your system extremely easy.
As with all LifeGuard sensors, off-the-shelf or semi-custom options are available to meet your unique needs.
Technical Specifications |
|
| Standard range | 0.3 in – 5.0 in (7.6 mm – 127.0 mm) |
| Near wall range | Customizable for odd shaped reservoirs or sound absorbing contents |
| Sensor dimensions | 0.50 in (12.7 mm) Diameter (At mounting Flange) 0.95 in (24.1 mm) Length (without cable/strain relief ) |
| Mounting bracket dimensions | Length: 2.12 in (53.8 mm), Width: 0.81 in (20.6 mm), Height: 1.02 in (25.9 mm) |
| Standard mounting bracket | Disposable, self-adhering mounting bracket with removable “click-on” retaining cover mounts on flat surface or curved surface with radius of ≥ 3 inches (76.2 mm) |
| Custom mounting | Mounting mechanism designed according to customer specifications |
| Operating temperature | 10° to 50° C |
| Operating humidity | 0% to 90% relative humidity |
| Supply voltage | 2.7 – 5.0 VDC |
| Supply current | 5.0 – 8.0 mA |
