24 Series Servo Valves

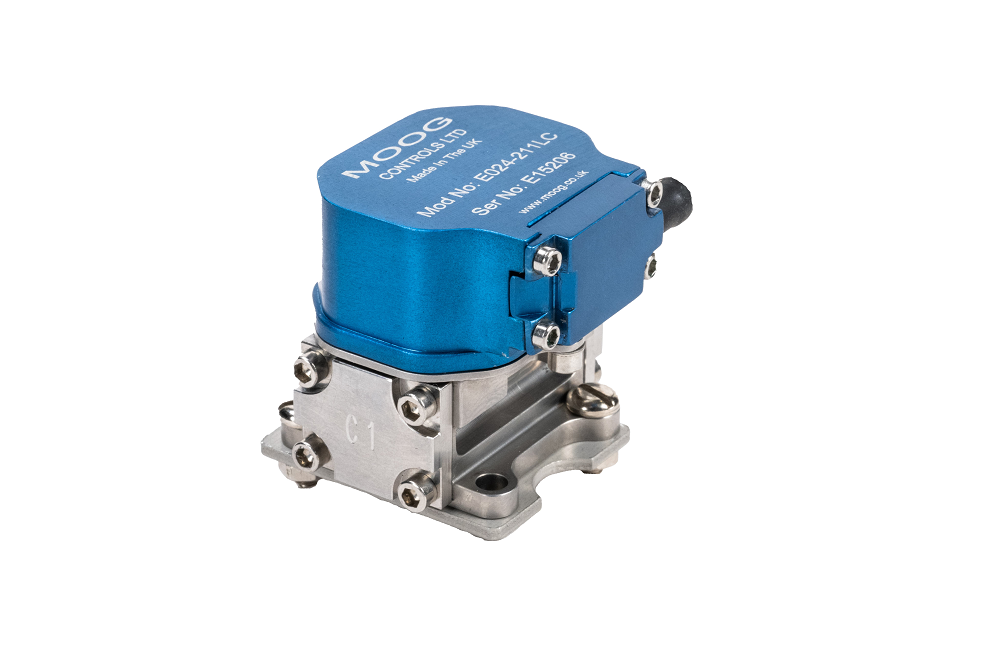

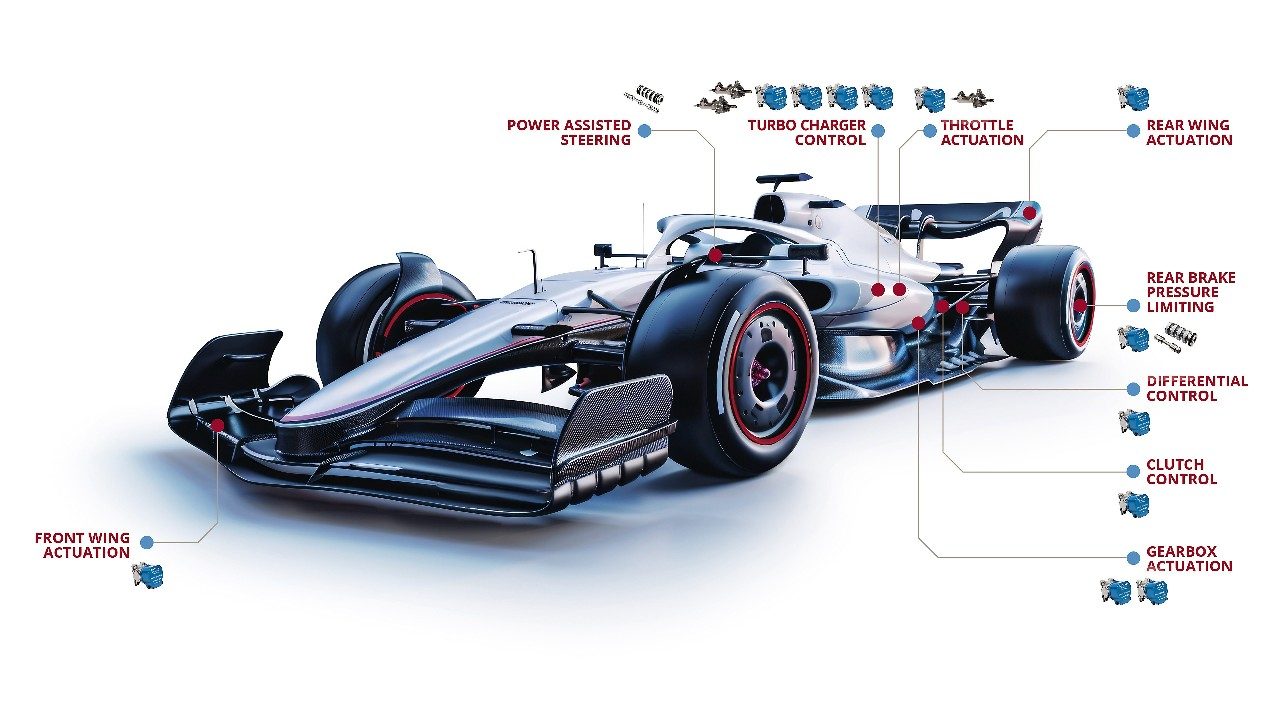

Moog’s 24 Series is the smallest and lightest nozzle-flapper valve ever made, making it ideal for high-performance motorsport applications where weight and size are critical. Moog is proud to supply the entire F1 grid with 24 Series servo valves that control some of the most demanding chassis and powertrain controls in motorsport.

The 24 series can withstand the harshest of environments with a shock rating up to 50g, and operating temperature up to 135 °C, all whilst delivering rapid and precise control.

CONTACT OUR EXPERTS >

Jump To:

Features

Specifications

Resources

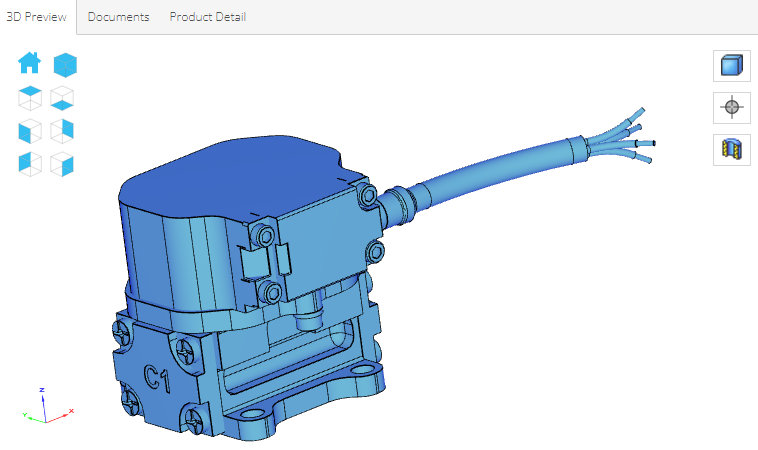

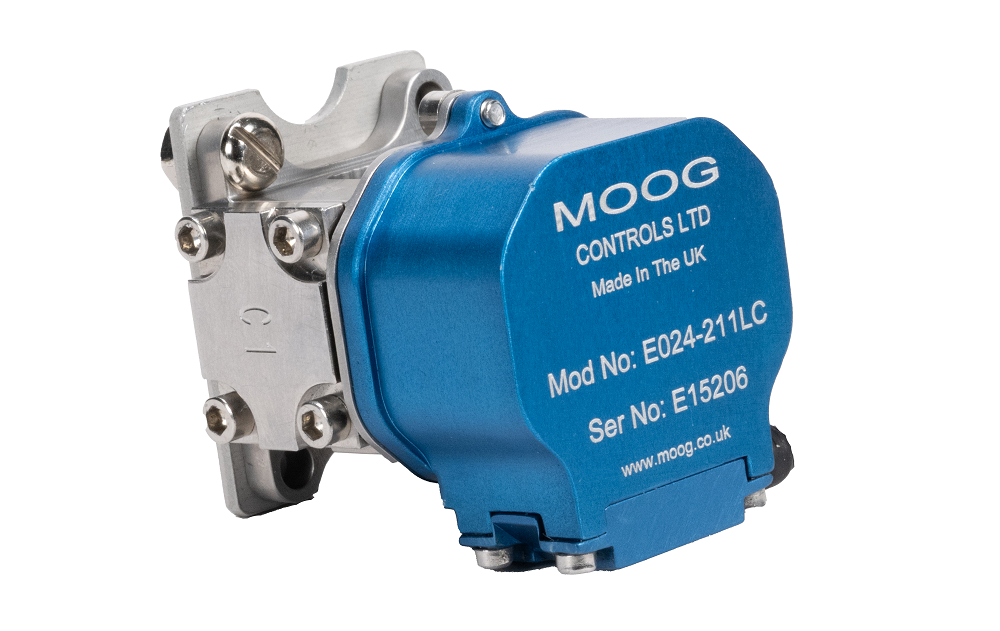

Ultra Lightweight Design Weighing just 95g (3.35 oz)
Compact, Space-Saving Package Significantly smaller than the E030 series, making integration easier in the most demanding applications.
High Flow Performance Delivers up to 7.5 l/min (1.98 USg/min), providing the power and responsiveness required for top-tier motorsport systems.
Aerospace-Proven Reliability Developed from Moog's proven E030 aerospace servovalve technology used in civil and military flight control applications.
Fast, Precise Control Rapid response and highly repeatable performance ensure pinpoint accuracy for position, pressure and force control.
Formula 1 Ready Efficiency Low 10 mA input signal, F1 ECU compatibility, high power density and excellent energy efficiency for maximum system performance.

Specifications
Hydraulic Data
Rated Flow*	0.3 to 7.5 l/min (0.1 to 2.0 USg/min)
Standard Configurations	0.3, 0.4, 1.0, 1.5, 2.0, 3.8, 5.0, 7.5 l/min (0.1, 0.3, 0.4, 0.5, 1.0, 1.3, 2.0 USg/min)
Max. Operating Pressure	280 bar (4,061 psi)
Performance Data
100% Step Response**	1.8 ms
Frequency Response***	up to 400 Hz
Electrical Data
Rated Signal****	10 mA
Standard Configurations	10 mA
Physical Data
Size (Mounting Pattern)	Moog Standard
Weight	95 g (3.35 oz)
Additional Options	High Efficiency, Vented Motor Cap, Logic Visit Moog.com/miniature for additional options
