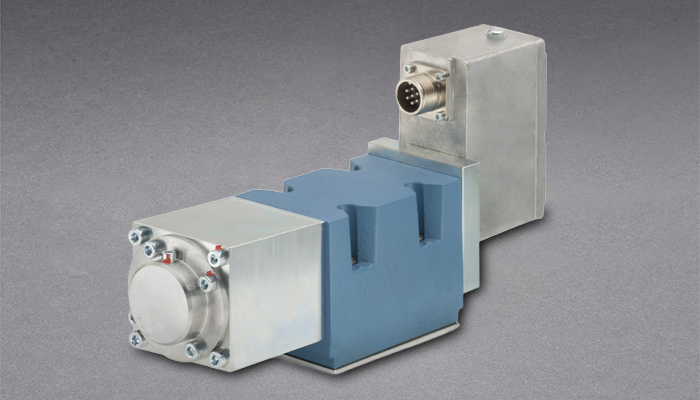

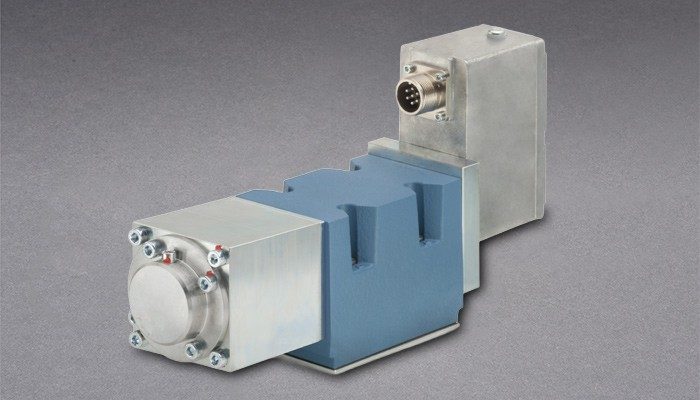

Series D634-P - Direct Driven Proportional Valves (DDV) for flow control with analog interface
Jump To:
Features
Specifications
Resources
Related
Features:
- High‑dynamic direct drive design powered by a permanent‑magnet linear force motor for rapid response and precise control
- Integrated closed‑loop spool position electronics ensure accurate, repeatable valve performance with low hysteresis
- Energy‑efficient 24 VDC PWM electronics reduce power consumption while delivering smooth, reliable operation
- Enhanced safety through spring‑centered fail‑safe design, ensuring the spool returns to neutral upon loss of power, a broken cable, or emergency stop conditions
| Specifications | |
| Control Functions | Flow |
| Mounting Pattern | ISO 4401 Size 05 (NG10) |
| Hydraulic Data | |
| Rated Flow at ∆p 35 bar (500 psi) per land | up to 60 l/min (15.8 gpm) |
| Maximum Flow | 185 l/min (48.8 gpm) |
| Maximum Operating Pressure | Port P, A, B - 350 bar (5,000 psi) |
| Port T without Y - 50 bar (715 psi) | |
| Port T with Y - 210 bar (3,000 psi) | |
| Step Response Time for 0 to 100% Step | 25 ms |
| Electrical Data | |
| Supply Voltage | 24 VDC (19 to 32 VDC) |
| Rated Signal Options | +/-10 V, +/-10 mA and 4 to 20 mA |
| Electrical Connectors | 6+PE |
