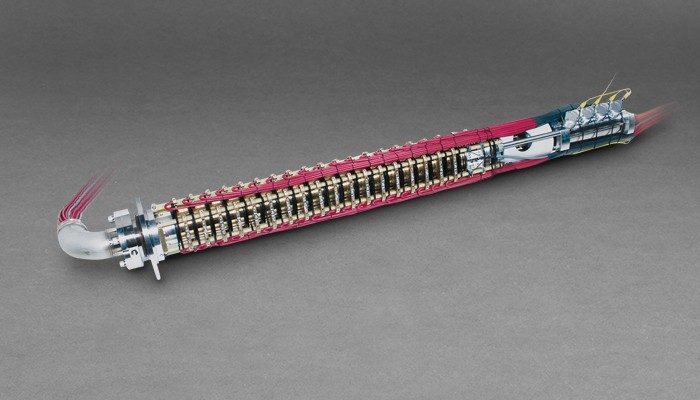

Winch Slip Rings
Moog Focal has delivered trusted technology products and services to the offshore petroleum, oceanographic, seismic and maritime industries for more than 30 years. Focal winch slip rings are designed to function in extreme marine environments.
| Model | Current | Voltage | Size (OD) | Rotation Speed | Through Bore | |||
|---|---|---|---|---|---|---|---|---|
| 129 | Max 125 A per pass | 7200 VAC max | 12.75" 324 mm |
Max 50 rpm continuous | No | |||
| 159 | Max 60 A per pass, Max 1000 A total current* | 7200 VAC max | 6.62" 219 mm |
Max 50 rpm continuous | No | |||
| 176 | Max 20 A per pass, Max 720 A total current* | 7200 VAC max | 5.52" 140 mm |
Max 50 rpm continuous | No | |||
| 180 | Max 7 A per pass, Max 100 A total current | 1000 VAC max | 2.85" 72.4 mm |
Max 100 rpm continuous | No | |||
| * Max total current is depenedent on duty cycle, ambient temperature and specific configuration. Consult factory to ensure configuration is suitable for application. | ||||||||
