AG-12600 Brushless Alternators

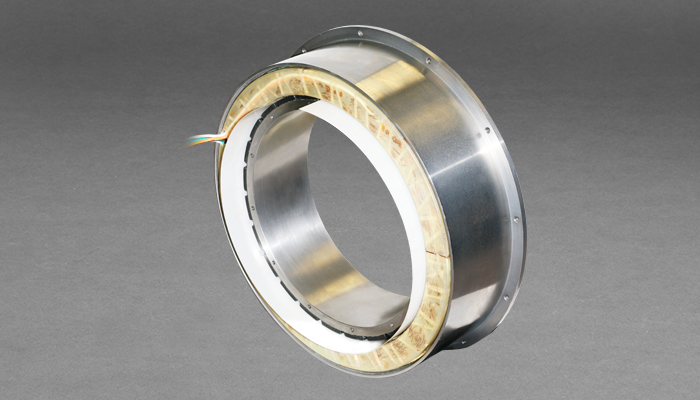

Brushless Alternator

Moog's AG-12600 brushless permanent magnet alternators are used in applications that require high power density. These alternators are available in a wide range of sizes. The AG Matrix™ series alternators have outside diameters from 5.25 to 22 inches (133.35 mm to 558.8 mm) with multiple stack sizes and winding options for each diameter.

For more information about how AG-12600 alternators can be tailored to fit your specific application, contact our applications engineers.

CONTACT OUR EXPERTS >

Details, Features and Typical Applications

FEATURES

  • High performance per volume
  • Small footprint
  • Maximum ouput power and efficiency
  • Double insulated high temp magnet wire minimizes leakage current and provides good thermal resistance

TYPICAL APPLICATIONS

  • Auxiliary power generation
  • Wind energy
  • Onboard power generation for manned and unmanned vehicles

Specifications



Model
 Continuous Rated Power (w) Rated Speed (rpm) Voltage
(V rms)
at Rated Power		 Current (Amps rms)
at Rated Power		 Efficency (%)
at Rated Power		 Input Torque at Rated Speed
lb.ft (N.m)		 OD* ID Weight
AG-12600
-A-1ES		 966 250 256 2.18 79 35.8
(48.54)		 12.60
(320.0)		 8.75
(222.25)		 21.0
(9.53)
AG-12600
-A-2ES		 3874 800 280 7.98 90 37.7
(51.12)		 12.60
(320.0)
 8.75
(222.25)
 21.0
(9.53)
AG-12600
-B-1ES		 2149 250 265 4.68 85 73.0
(99.99)		 12.60
(320.0)
 8.75
(222.25)
 36.0
(16.33)
AG-12600
-B-2ES		 7998 800 285 163.17 90 76.8
(104.14)		 12.60
(320.0)
 8.75
(222.25)
 36.0
(16.33)
AG-12600
-C-1ES		 3681 250 283 7.27 86 120.0
(162.72)		 12.60
(320.0)
 8.75
(222.25)
 51.0
(23.13)
AG-12600
-C-2ES		 12281 800 301 22.75 91 118.0
(160.01)		 12.60
(320.0)
 8.75
(222.25)
 51.0
(23.13)
AG-12600
-D-1ES		 4737 250 278 9.82 87 154.0
(208.82)		 12.60
(320.0)
 8.75
(222.25)
 65.0
(29.48)
AG-12600
-D-2ES		 16388 800 284 33.02 91 157.0
(212.89)		 12.60
(320.0)
 8.75
(222.25)
 65.0
(29.48)
AG-12600
-E-1ES		 5966 250 282 12.23 88 193.0
(261.71)		 12.60
(320.0)
 8.75
(222.25)
 80.0
(36.29)
AG-12600
-E-2ES		 20941 800 297 40.31 91 201.0
(272.56)		 12.60
(320.0)
 8.75
(222.25)
 80.0
(36.29)
AG-12600
-F-1ES		 7049 250 280 14.52 89 227.0
(307.81)		 12.60
(320.0)
 8.75
(222.25)
 96.0
(43.55)
AG-12600
-F-2ES		 23986 800 277 49.27 91 230.0
(311.88)		 12.60
(320.0)
 8.75
(222.25)
 96.0
(43.55)

Ambient Temperature = 25° C.
Winding temperature rating permissible to 155° C.
Assumes stator housing covers entire stator OD in contact with ambient air at 25° C.
Operation with unity power factor.
Rated 230 VAC phase to phase ±10%, voltage level may be adapted according to the application.
All alternators are three phase, all voltages expressed as phase to phase.

*Dimensions do not reflect mounting tip.
Stack lengths from 0.25 to 25.00 inches (6.35 to 635 mm)

Resources

3D Models

CAD Files

Icon Image AG-12600 Alternator 3D Model
